When selecting a rock crusher for mining, quarrying, or construction, two of the most common options are jaw crushers and cone crushers. While both are used for crushing hard materials, they operate differently and suit distinct applications. This article compares jaw crusher vs cone crusher in terms of working principles, performance, cost, maintenance, and real-world use cases to help you make the best choice.

 How They Work: Crushing Mechanisms

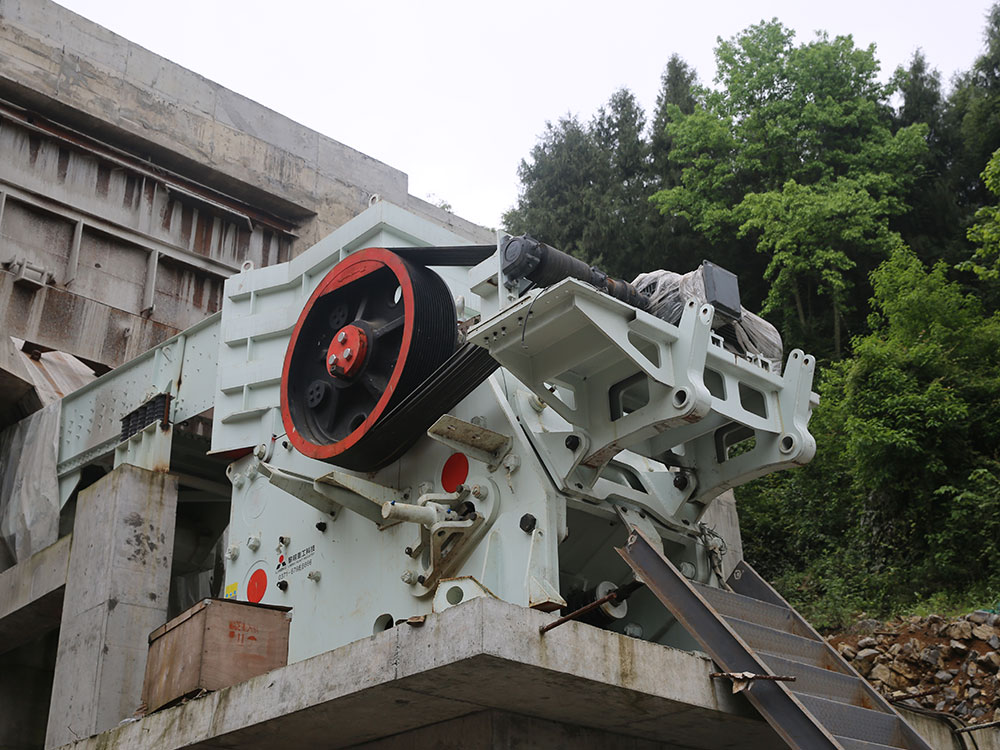

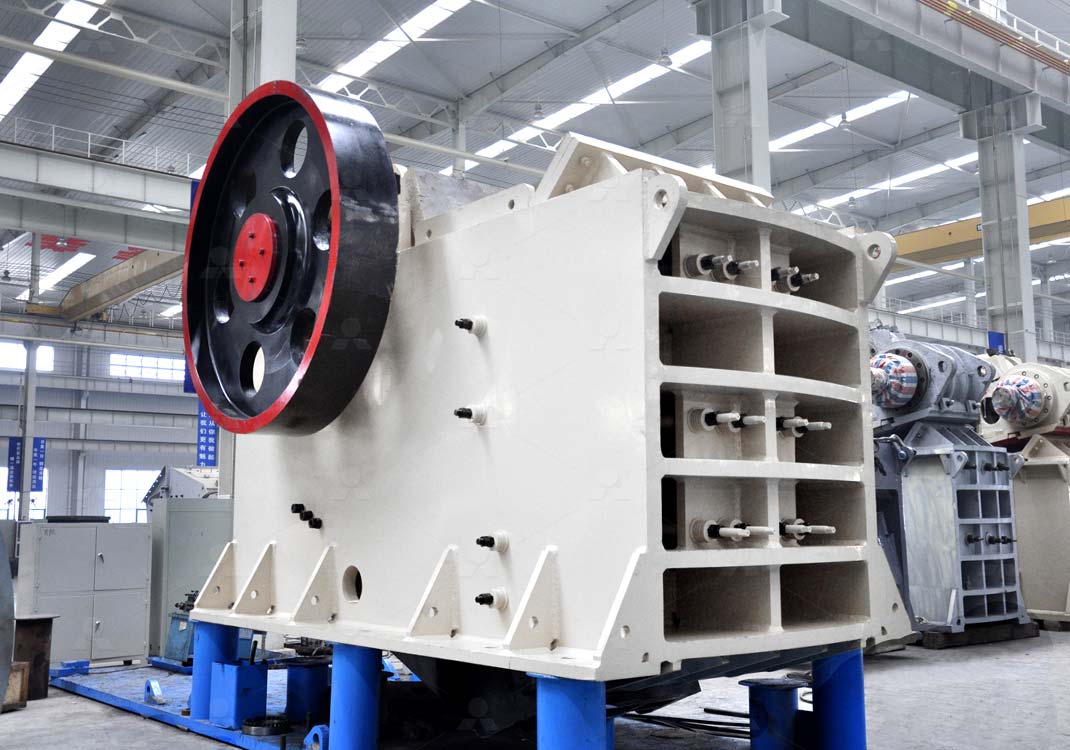

Jaw Crusher
Primary crushing: Breaks down large rocks (up to 1.5m) into smaller pieces.

Compression-based crushing: A fixed jaw and a moving jaw squeeze material until it fractures.

Simple design: Fewer moving parts, making it robust for abrasive materials.

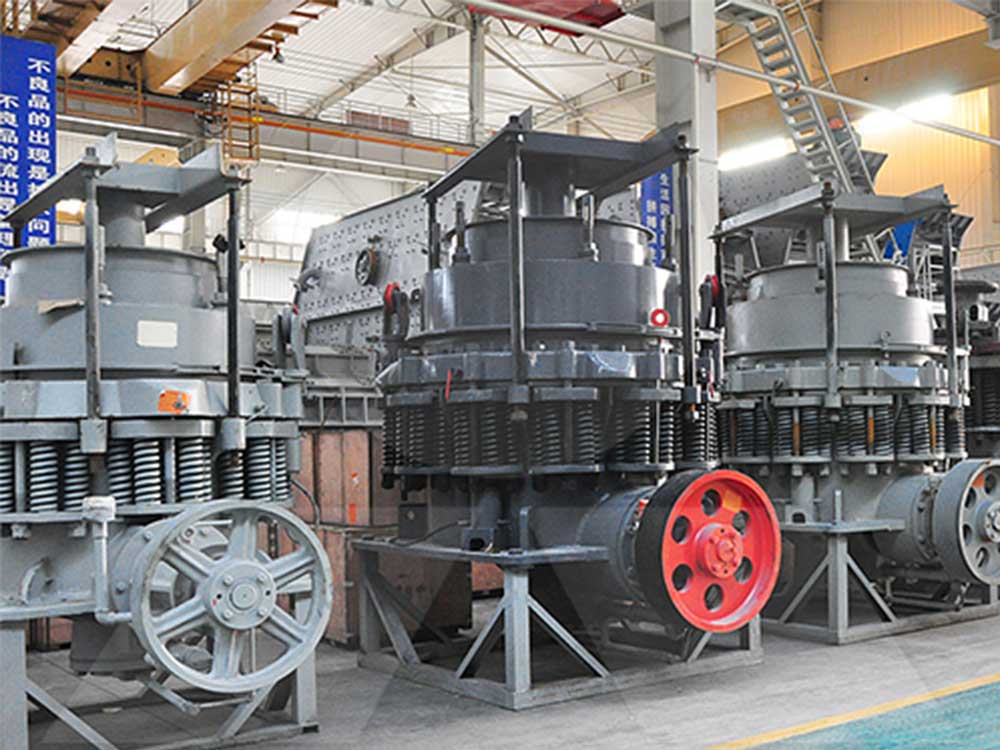

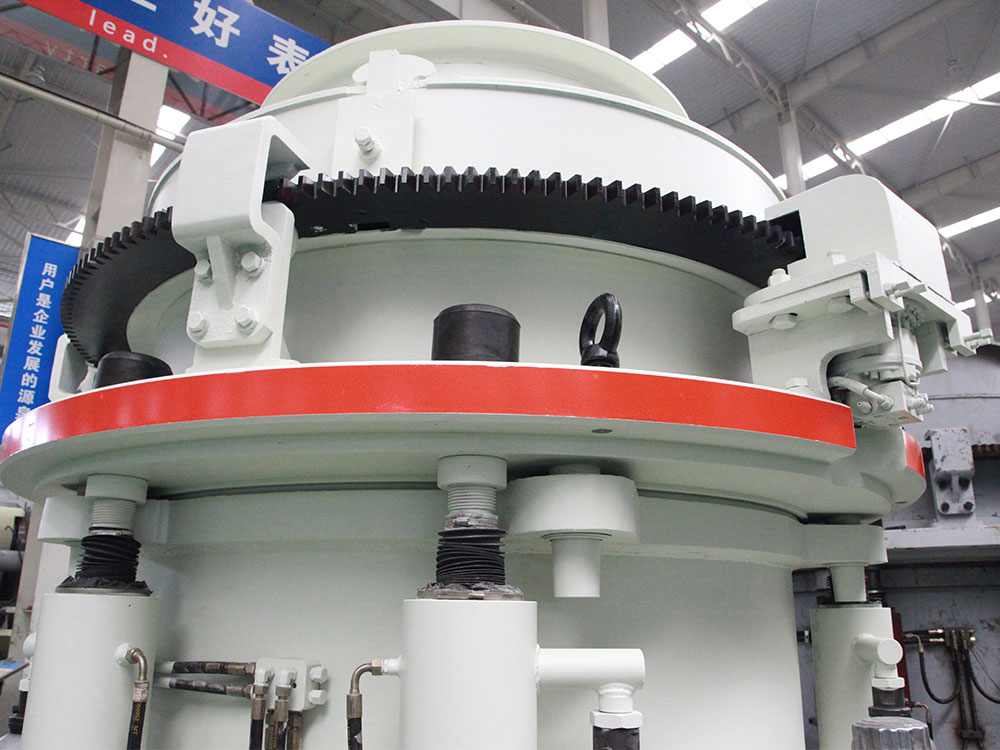

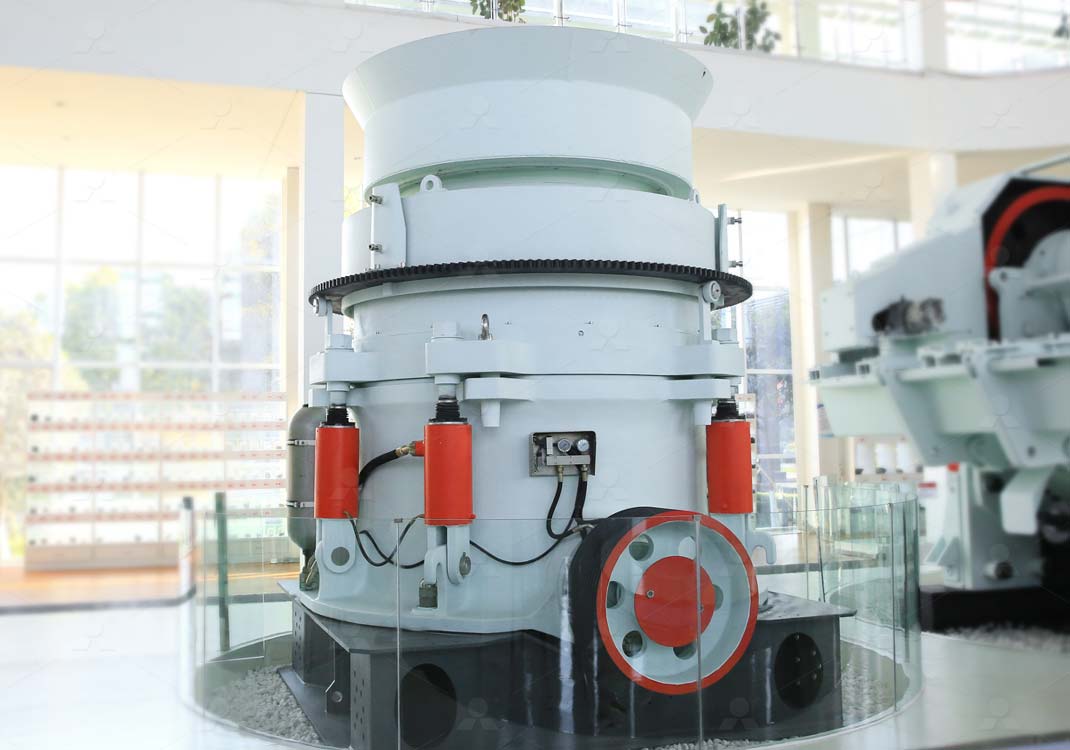

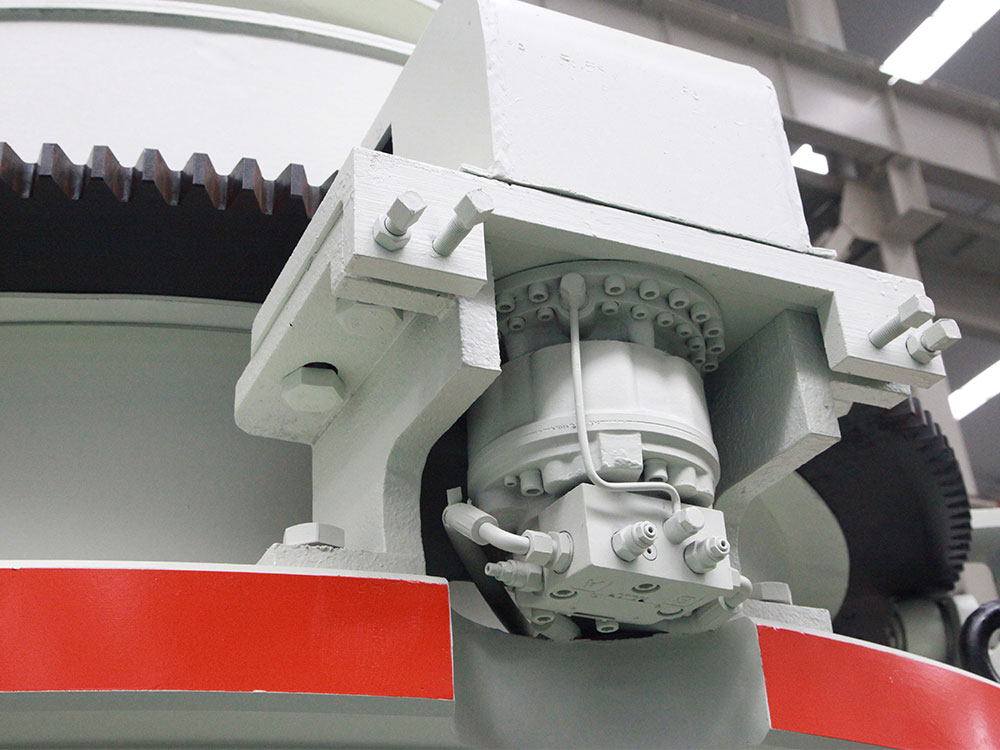

Cone Crusher

Secondary/Tertiary crushing: Further reduces material after primary crushing.

Gyrating mantle & concave: The mantle rotates eccentrically, compressing rock against the concave.

More precise output: Produces finer, more uniform particles.

Key Performance Differences

Feature Jaw Crusher Cone Crusher
Crushing Stage Primary Secondary/Tertiary
Max Feed Size 1500mm 300mm
Output Size 50-250mm 5-60mm
Capacity (TPH) 50-1500 50-1200
Power Consumption Lower Higher
Summary:

Jaw crushers handle larger raw materials but produce coarser output.

Cone crushers refine material into smaller, more consistent sizes.

Product Specifications (Example Models)

Here’s a comparison of standard jaw crusher and cone crusher models (generic specifications):

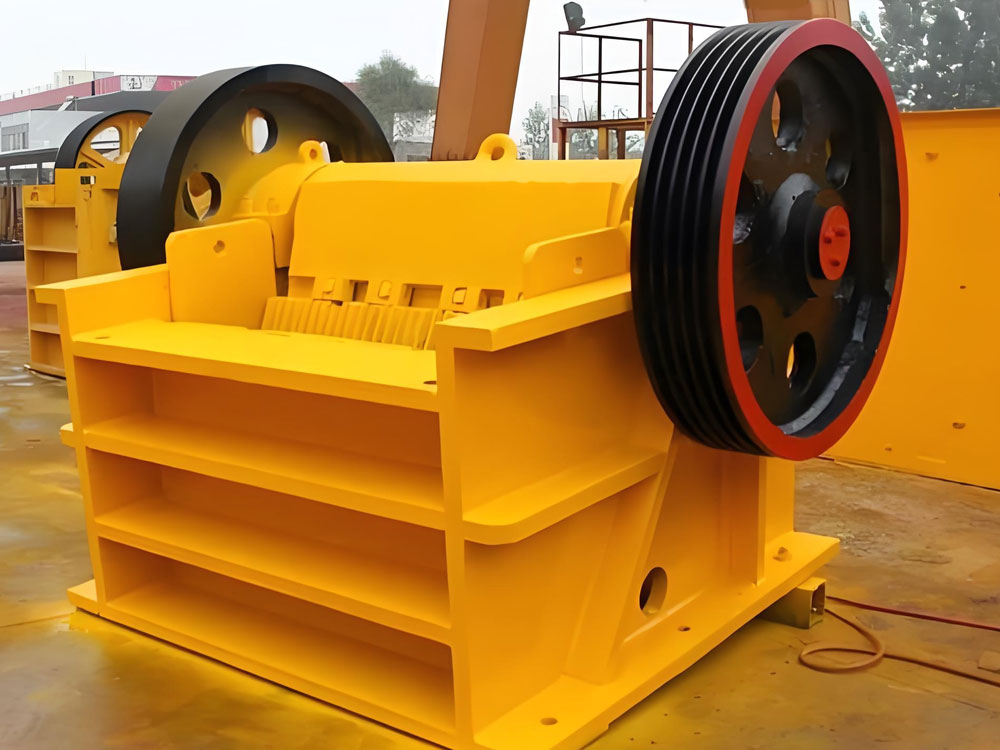

Jaw Crusher (PE-1200×1500 Model)
Feed Opening: 1200×1500mm

Max Feed Size: 1000mm

Output Size: 150-300mm

Capacity: 400-800 TPH

Motor Power: 160-220 kW

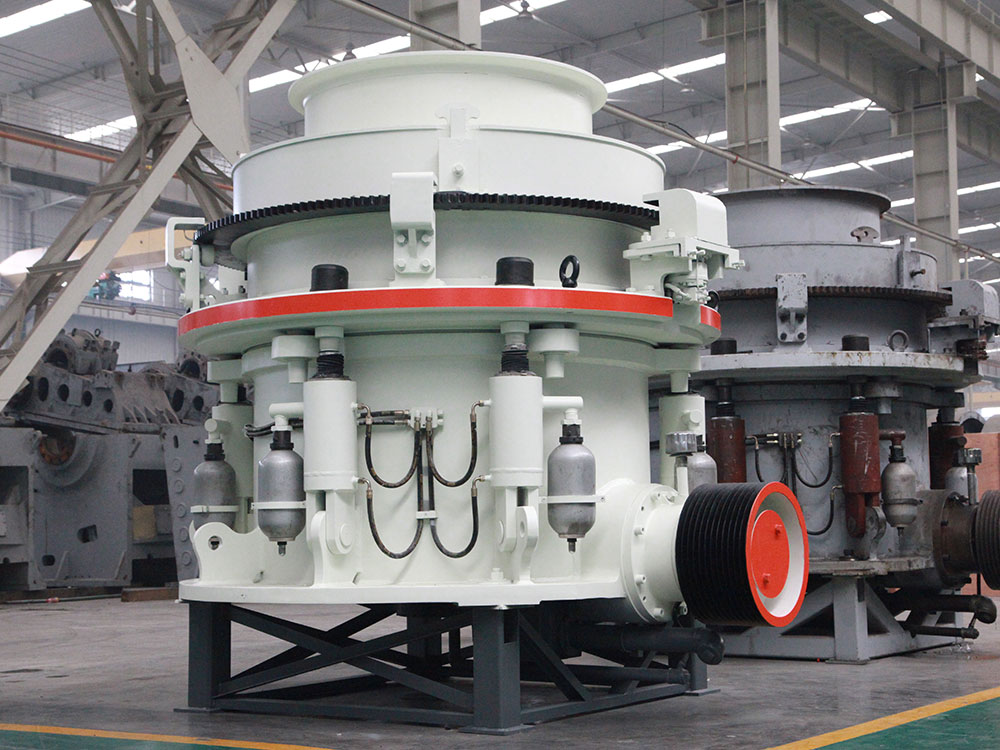

Cone Crusher (CS-5.5ft Model)
Max Feed Size: 300mm

Output Size: 5-60mm (adjustable)

Capacity: 200-600 TPH

Motor Power: 315 kW

Takeaway:

Jaw crushers are better for primary crushing of large rocks.

Cone crushers excel in producing finer aggregates.

 Cost & Maintenance Comparison

Jaw Crusher
✔ Lower initial cost
✔ Easier maintenance (fewer wear parts)
✔ Longer lifespan for jaw plates

Cone Crusher
✔ Higher efficiency for fine crushing
✖ More expensive upfront
✖ Complex maintenance (mantle, concave, bushings)

Best for Budget?

If you need low-cost primary crushing, choose a jaw crusher.

If precise shaping & high-quality aggregates matter, invest in a cone crusher.

Real-World Applications (Case Study)

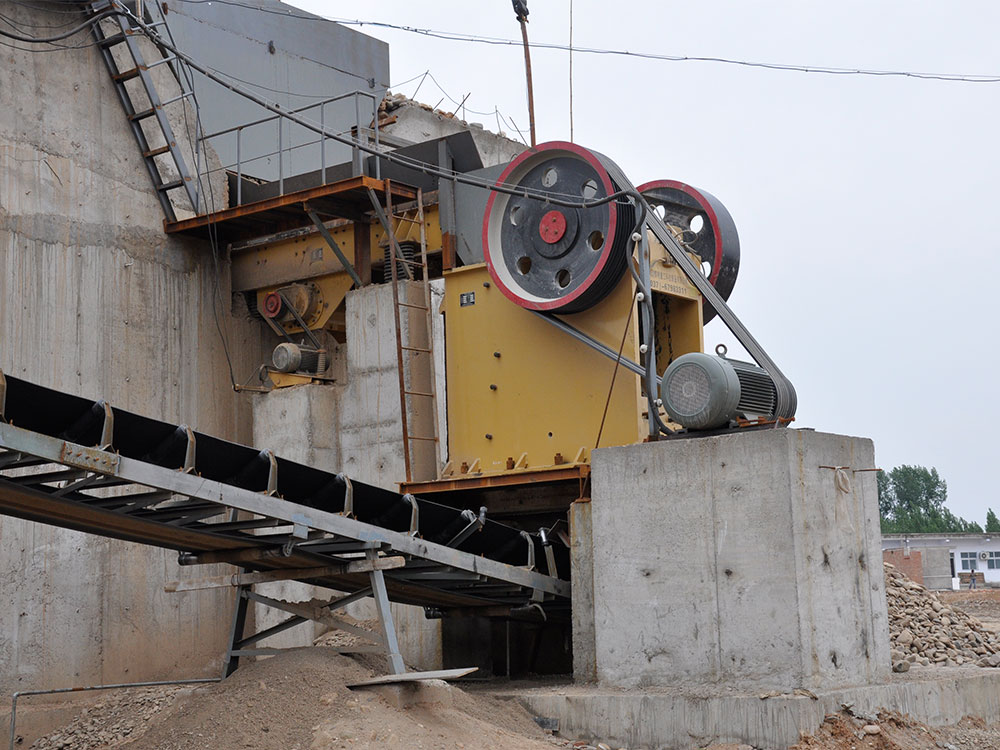

Case 1: Granite Quarry (Primary Crushing with Jaw Crusher)
Location: Southeast Asia

Material: Hard granite (600mm feed size)

Solution: A jaw crusher reduced raw granite to 200mm chunks before secondary processing.

Result: High uptime, low wear costs, and efficient primary crushing.

Case 2: Aggregate Plant (Secondary Crushing with Cone Crusher)
Location: Europe

Material: 250mm limestone (pre-crushed by jaw crusher)

Solution: A cone crusher produced 20mm final product for concrete.

Result: Consistent shape, ideal for high-grade construction.

How to Choose the Right Crusher?

Choose a Jaw Crusher If:
✅ You need primary crushing of large rocks.
✅ Your budget is limited.
✅ You prioritize durability & simplicity.

Choose a Cone Crusher If:
✅ You need fine, well-shaped aggregates.
✅ Your material is medium-hard to hard.
✅ You can afford higher maintenance.

Hybrid Solution? Many plants use both: a jaw crusher for primary crushing and a cone crusher for secondary refinement.

Conclusion
Both jaw crushers and cone crushers are essential in mining and construction, but they serve different purposes. A jaw crusher is best for primary crushing of large, hard materials, while a cone crusher is ideal for producing finer, high-quality aggregates.

By understanding their differences in performance, cost, and applications, you can select the right crusher for your project. Need help deciding? Consult an expert to match your requirements with the best crushing solution.
