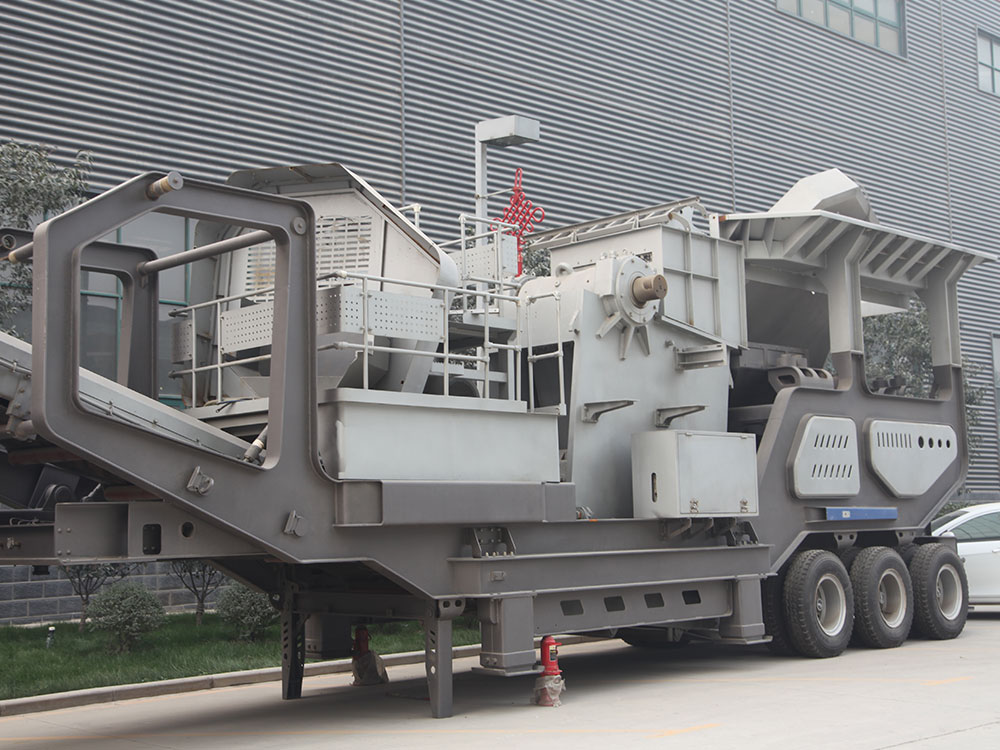

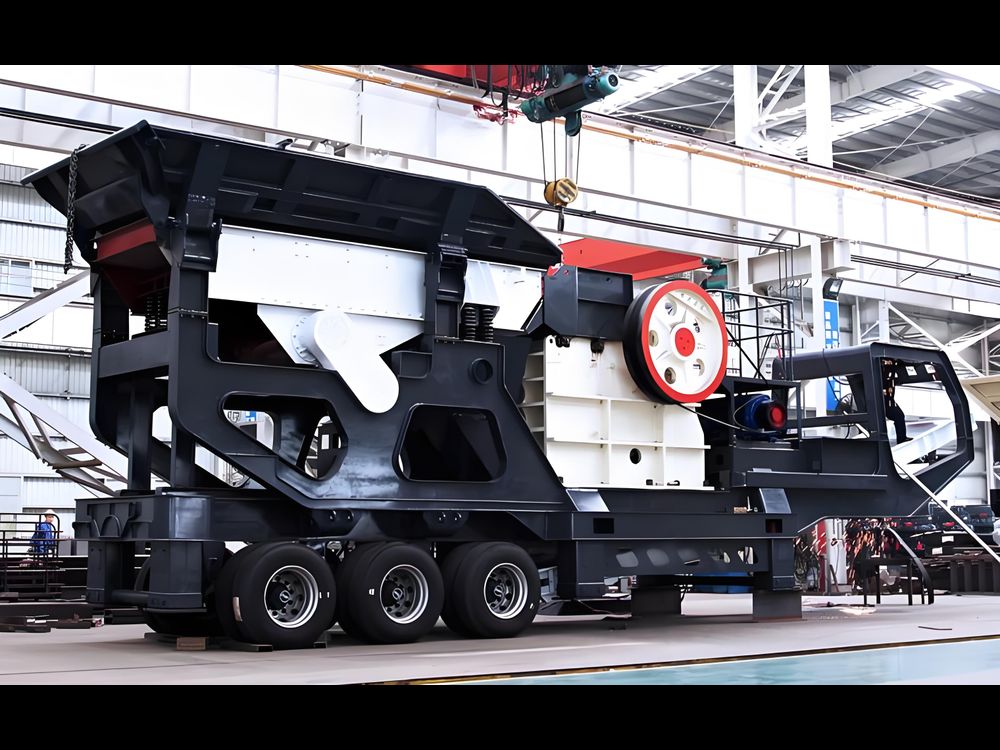

The vehicle-mounted mobile 69 jaw crusher, a perfect combination of jaw crushing technology and advanced mobile chassis technology, is tailor-made for processing limestone, granite and other medium and high hardness materials, which is not only cost-effective and flexible, but also shows excellent performance in many practical application scenarios. The following is a detailed description of its outstanding advantages:
Limestone Crushing Efficiency
High-efficiency processing capacity:
The model is equipped with a PE-600×900 jaw crusher, a configuration that allows it to accept feed sizes up to 500 mm. Through a precise adjustment mechanism, the discharge size can be flexibly adjusted between 65 and 160 mm to meet different customer needs.
With a capacity of 50 to 160 tons per hour when processing limestone, this efficient capacity makes the truck-mounted Mobile 69 Jaw Crusher ideal for large-scale crushing operations.
Optimized for fit:
Through in-depth optimization of the cavity design, this model significantly improves crushing efficiency and ensures uniformity of the finished product size. This feature makes the limestone aggregate perfectly suited to the high standards of road and bridge construction and building aggregates.
For example, in a large-scale road and bridge construction project, the limestone aggregate produced by the truck-mounted mobile 69 jaw crusher was highly praised for its uniform particle size and stable quality.
Green:
The model integrates advanced dust removal and noise reduction systems, effectively reducing dust emissions and noise pollution during operation. This environmental protection feature makes it still able to maintain strong market competitiveness in today's increasingly strict environmental protection requirements.
Granite processing capacity
Excellent compressive performance:
For high hardness materials with compressive strength up to 320MPa, the truck-mounted mobile 69 jaw crusher adopts cast steel body and wear-resistant jaw plate design. This configuration ensures stable crushing performance and long service life when processing high hardness materials such as granite.
Example of high production capacity application:
In a granite production line in Jiangsu, the Model 69 Jaw Crusher is used in conjunction with a cone crusher and screening equipment to form an efficient and stable production line. The production line has an hourly output of 100 tons and can produce 51/12/13 sizes of stone, which meets the customer's demand for high-yield and high-quality stone.
Easy maintenance:
The structure design of this model is simple and clear, and the wearing parts are small and easy to replace. This feature helps to reduce the long-term operating costs of customers and improve the overall cost-effectiveness of the equipment.
Three material co-production solution
By scientifically configuring the front jaw crusher for coarse crushing, secondary cone crusher for intermediate crushing, and multi-layer vibrating screening equipment for fine screening, the truck-mounted mobile 69 Jaw Crusher is able to easily realize the following product classifications:
Coarse material (40-160mm):
Output directly from the jaw crusher, suitable for roadbed filling and other coarse particle demand scenarios.
Medium Material (20-40mm):
Output after further processing by cone crusher, which can be used as concrete aggregate. This size of aggregate can provide good mechanical properties and stability in concrete.
Fine material (0-20 mm):
Output after fine screening by screening equipment, can be used in sand making or masonry mortar and other fine particle demand scenarios. This size of fines can provide good bonding and filling properties in mortar.
The vehicle-mounted mobile 69 jaw crusher shows strong market competitiveness in the crushing operation of medium and high hardness materials such as limestone, granite, etc. with its outstanding advantages of high efficient processing capacity, excellent adaptability optimization, green environmental protection features and easy maintenance. At the same time, through the scientific three materials with production program, this model can also meet the customer's demand for a variety of particle size products, to achieve a win-win situation of economic and social benefits.
