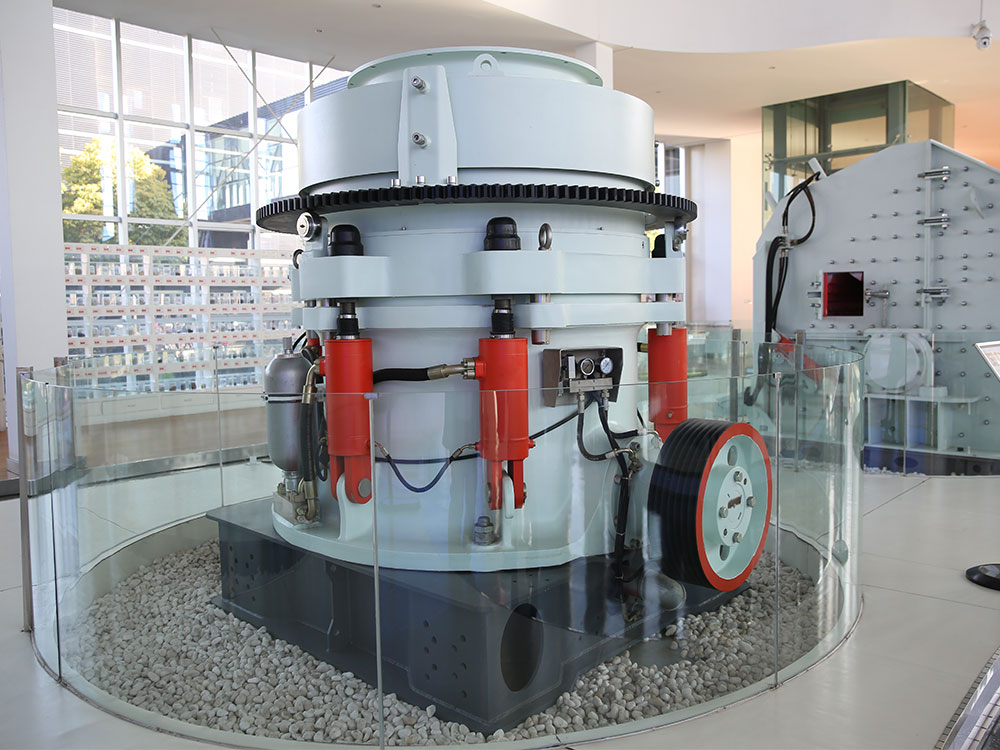

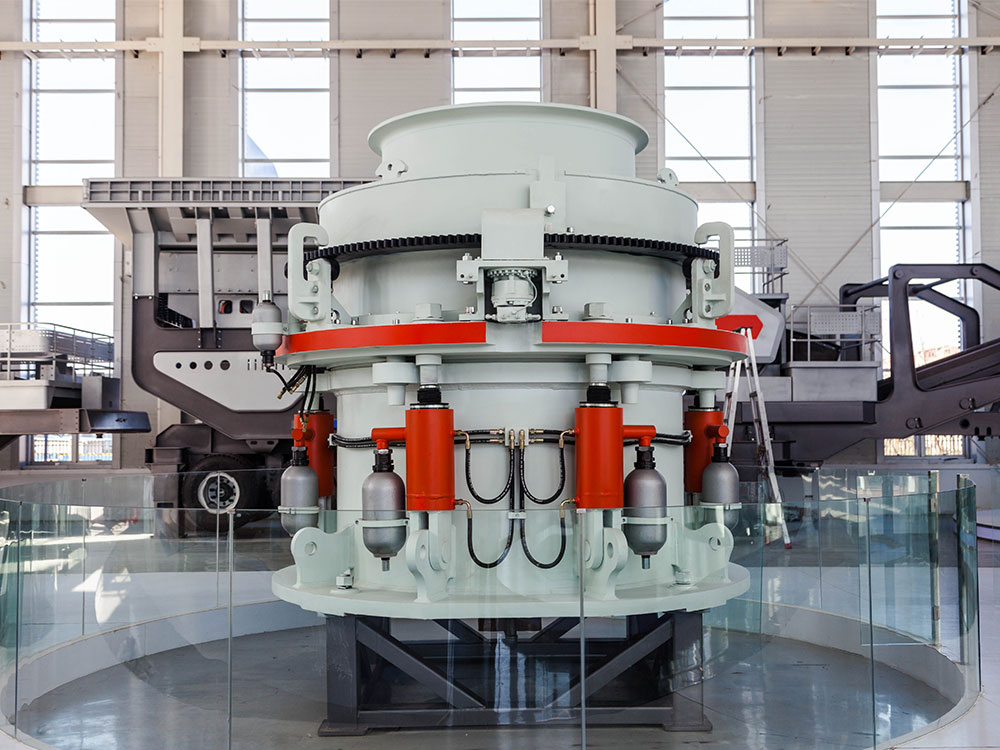

GP500 cone crusher is a high-performance crushing equipment designed for hard rock crushing needs in large-scale mines and quarries. Its sturdy structure and strong crushing force are suitable for processing high-hardness and highly abrasive materials. GP500 not only has the characteristics of high output and high efficiency, but also can achieve precise production management through advanced automatic control system, reduce manual intervention, and make operation more convenient and reliable. The equipment adopts optimized cavity design, which can provide a larger feed port and a reasonable crushing cavity, so that the material is evenly stressed during the crushing process, effectively reducing the phenomenon of over-crushing. The hydraulic adjustment and overload protection functions of GP500 can easily adjust the discharge port and cavity without affecting production to meet different crushing needs and ensure the stable operation of the equipment. In addition, the structural design of GP500 is simple and easy to maintain, which greatly reduces the daily maintenance cost. Its wear-resistant materials make the service life of key parts longer, further improving the reliability and economy of the equipment. Overall, GP500 cone crusher is an ideal choice for high efficiency, energy saving and durability in large-scale production, and is widely used in medium and fine crushing operations of various types of ores and stones.
GP500 has strong crushing force and can handle high-hardness and high-abrasive materials. It is particularly suitable for crushing hard rocks such as basalt and granite. Its optimized cavity design ensures uniform force on the material during the crushing process and improves crushing efficiency.
The equipment has a large feed inlet and high production capacity, which is suitable for large-scale production lines. At the same time, the cavity design can reduce over-crushing, thereby improving the yield rate and making the crushing effect more ideal.
GP500 is equipped with an advanced automatic control system that can accurately adjust the crushing parameters. Operators can easily monitor the equipment operation status through the system interface, quickly adjust the equipment parameters, reduce manual intervention, and ensure the stability and efficiency of production.
The equipment uses a hydraulic system to adjust the discharge port to facilitate different crushing needs. In addition, the overload protection function can automatically detect and release the overload of the equipment, effectively avoiding equipment damage caused by overload.
GP500 uses highly wear-resistant materials to manufacture key components, making the equipment more durable in high-intensity use and extending its service life. The structural design is simple, maintenance is more convenient, and the downtime and maintenance cost of the equipment are reduced.
Through reasonable cavity design, the finished product shape produced by GP500 is uniform, which is suitable for fields with strict requirements on finished products and helps to improve product quality.
The working principle of GP500 cone crusher is based on extrusion crushing technology, and the material is crushed by the relative movement between the crushing cone and the fixed cone. Specifically, the motor drives the eccentric sleeve to rotate, and the rotation of the eccentric sleeve causes the crushing cone to swing eccentrically in the fixed cone, thereby continuously changing the gap size in the crushing chamber. On the side of the crushing cone close to the fixed cone, the material is crushed by the extrusion force; when the crushing cone leaves, the crushed material is discharged from the discharge port by its own gravity. The entire crushing process is carried out continuously, and the material is crushed layer by layer until the required particle size is reached. In the design of GP500, an optimized cavity type is adopted to make the material evenly stressed, effectively reducing the phenomenon of over-crushing. The equipment is also equipped with a hydraulic adjustment system, which can quickly adjust the size of the discharge port to meet different production needs. In addition, the overload protection device of GP500 can automatically shut down the equipment when it is overloaded, avoiding equipment damage caused by hard objects or overload. In general, the working principle of GP500 is simple and efficient. By continuously optimizing the cavity design and control system, its stability and reliability in large-scale production are ensured, making it an ideal choice for efficient crushing operations.
| Output | 150-650t/h | Feed port size | 290mm |
| Feed size | 80-0290mm | Machine weight | 34-38t |
| Discharge size | 10-50mm | Motor power | 400-450kw |

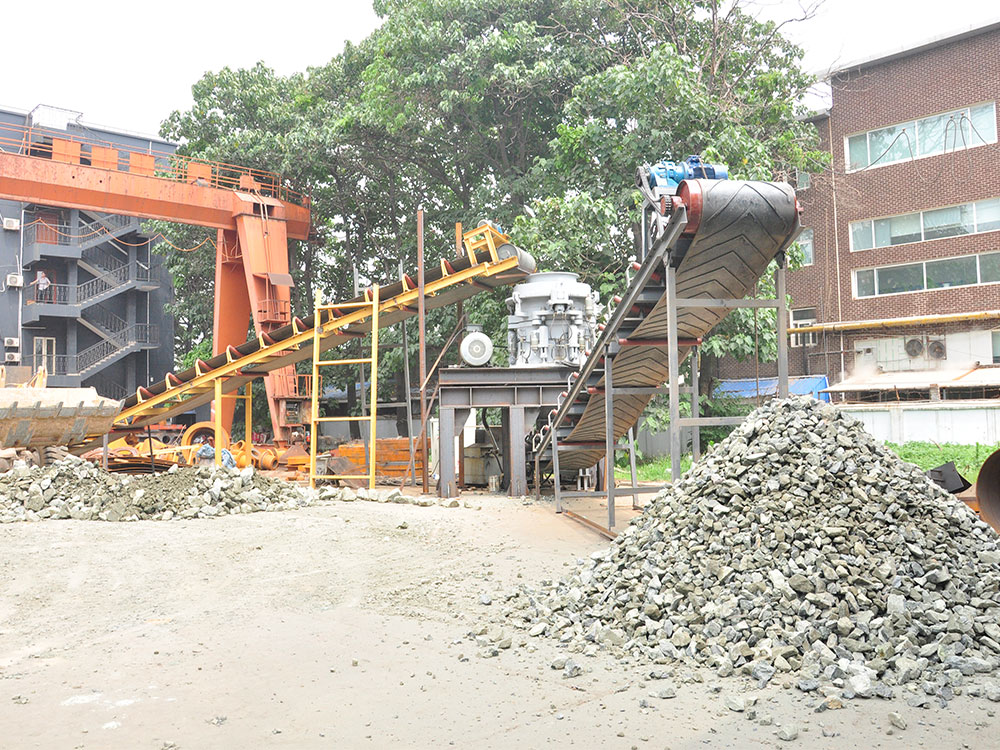

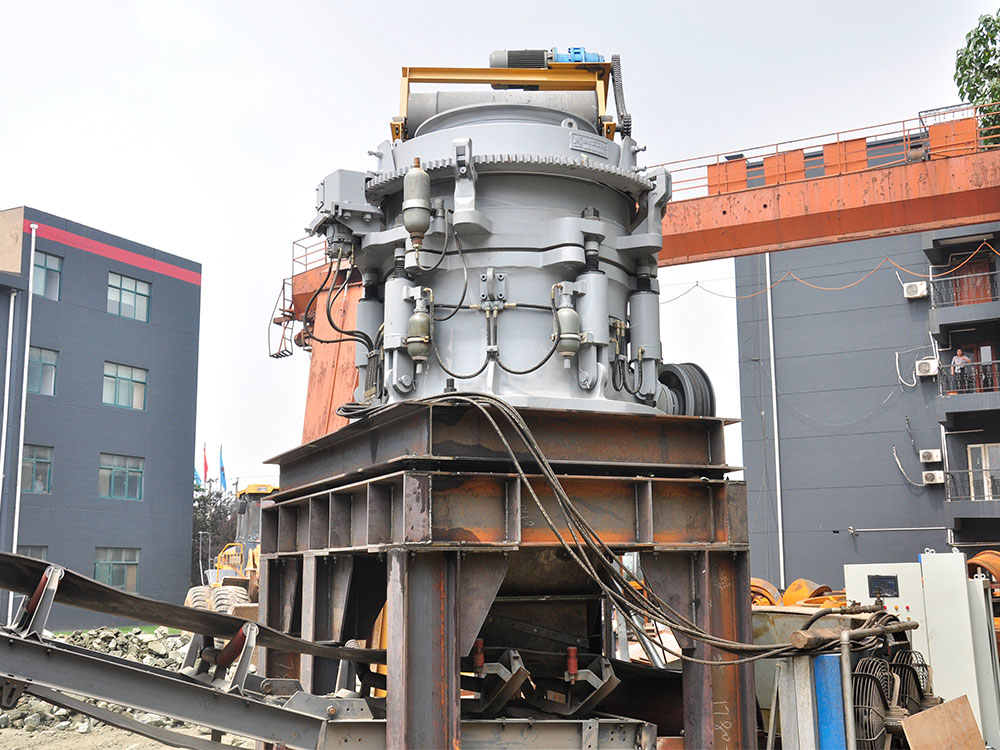

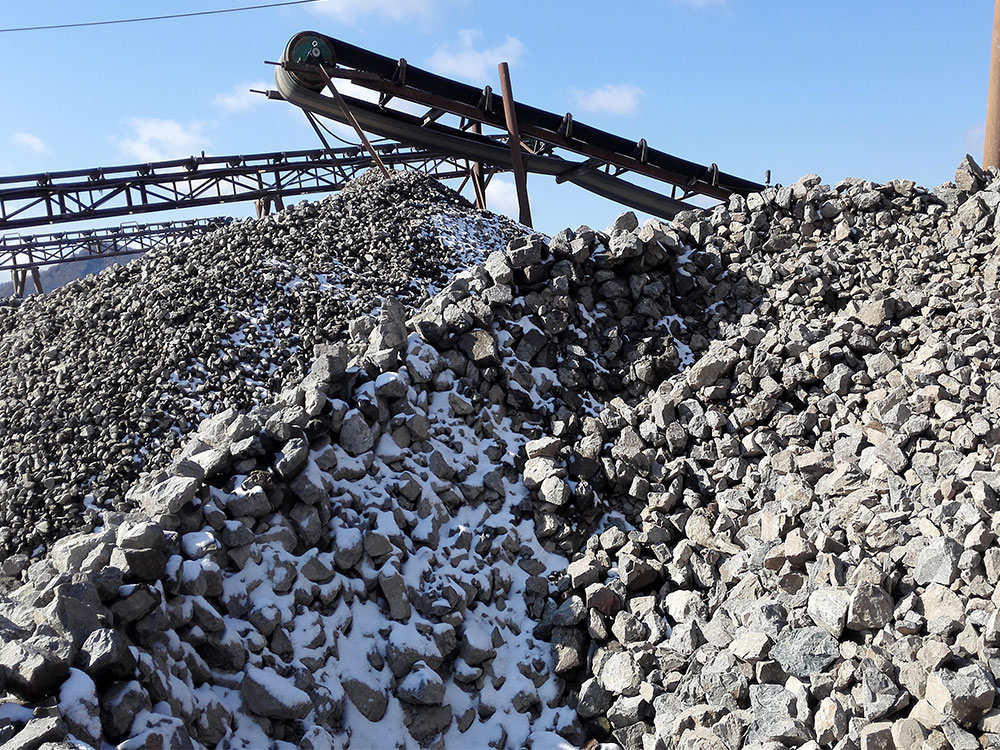

Project location: A large quarry in Thailand
Areas of application: Production of stone for construction and infrastructure construction
Material type: Mainly high-hardness granite, mixed with basalt in some areas
Crushing equipment: GP500 cone crusher
Supporting equipment: including jaw crusher, vibrating screen, conveyor belt, etc.
Production line design: A two-stage crushing process is adopted. First, the large granite is crushed through the jaw crusher for primary crushing, and then enters the GP500 for secondary crushing. Finally, it is screened through the vibrating screen to obtain finished products that meet the specifications. The average daily output of a single GP500 is around 500-600 tons, and the specific output varies with the material hardness and feed particle size. The discharge particle size is controlled between 10-30 mm, which can well meet the particle size requirements of building stones.
“The GP500’s crushing capacity is very strong and can handle large pieces of materials, ensuring that we can complete large-scale crushing operations efficiently. The output of the equipment is stable, with an average daily output of 500 to 600 tons, which fully meets our demand for high production. And , the finished product particle shape is very uniform, there is no over-crushing, and the product quality has been significantly improved.”
"In general, the GP500 cone crusher is an efficient, energy-saving and reliable equipment. It has helped us greatly improve our production efficiency and also saved us maintenance costs. It is an indispensable and important equipment in our mining production line. ”
