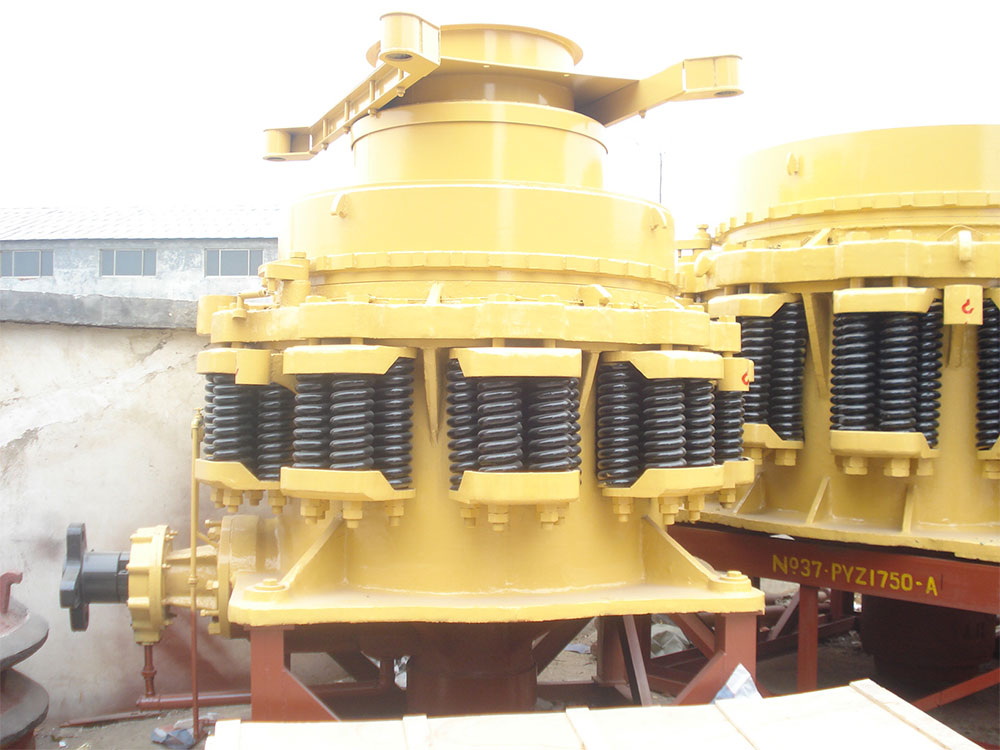

Spring cone crusher of hardness can be no more than 350 various kinds of materials, fine breaking of pa and weight. Can be used as a secondary, tertiary or quaternary broken. Is an advanced high-power crusher, big crushing ratio, high productivity, in various mining crushing production line, the system is widely used in sand gravel production line. To bring us under the principle of introduction of spring cone crusher and spring cone crusher.
Spring cone crusher structure and principle:
Spring cone crusher is mainly composed of machine frame, transmission, empty eccentric shaft, bowl bearings, crushing cone, adjustment device, adjustment set, spring, and row ore mouth with hydraulic station and other parts. Crusher work, through the horizontal axis of the motor and a pair of bevel gear drive the eccentric shaft sleeve, broken cone axis under the forced motion of eccentric shaft sleeve do rotary pendulum motion, makes the broken wall surface and sometimes near and sometimes leave the surface of the rolling mortar wall, which make the ore crushing cavity continuously by extrusion and bending were broken, after the material being broken to the required size from bottom discharging mouth eduction.
Properties:
1. High flexibility, the user can according to production needs, choose high grinding efficiency, uniform end product size, grain type suitable crushing cavity type.
2. The broken than degrees, high efficiency, high output.
3. The whole machine is cast steel structure, site Settings are reinforced, whole machine high strength.
4. A complete lubrication system, when the temperature is too high or low will automatically shut down.
5. The internal structure of the sealing performance is good, can effectively protect the equipment from dust and other particles.
6. Using both dry oil or water sealing way, make the dust impurities, unable to enter the body so as to guarantee the clean of drawing, prolong the service life of the sliding bearing, thrust ball bearing, reduce the production cost.
The above is a brief introduction of spring cone crusher, if you are interested to learn more about spring cone crusher can contact our customer service personnel, serve you wholeheartedly.
