In the dynamic world of quarrying and mining, the demand for robust, efficient, and versatile crushing equipment has never been higher. As industries strive to meet global infrastructure needs while adhering to environmental regulations, the choice of machinery plays a pivotal role in balancing productivity and sustainability. Among the standout solutions in this sector is the NP13 Impact Crusher, a cutting-edge machine designed to deliver high performance in both quarry and mining applications. This article explores the technical specifications, operational advantages, and real-world applications of the NP13, highlighting its role as a game-changer in material processing.
1. Technical Specifications and Design Innovations

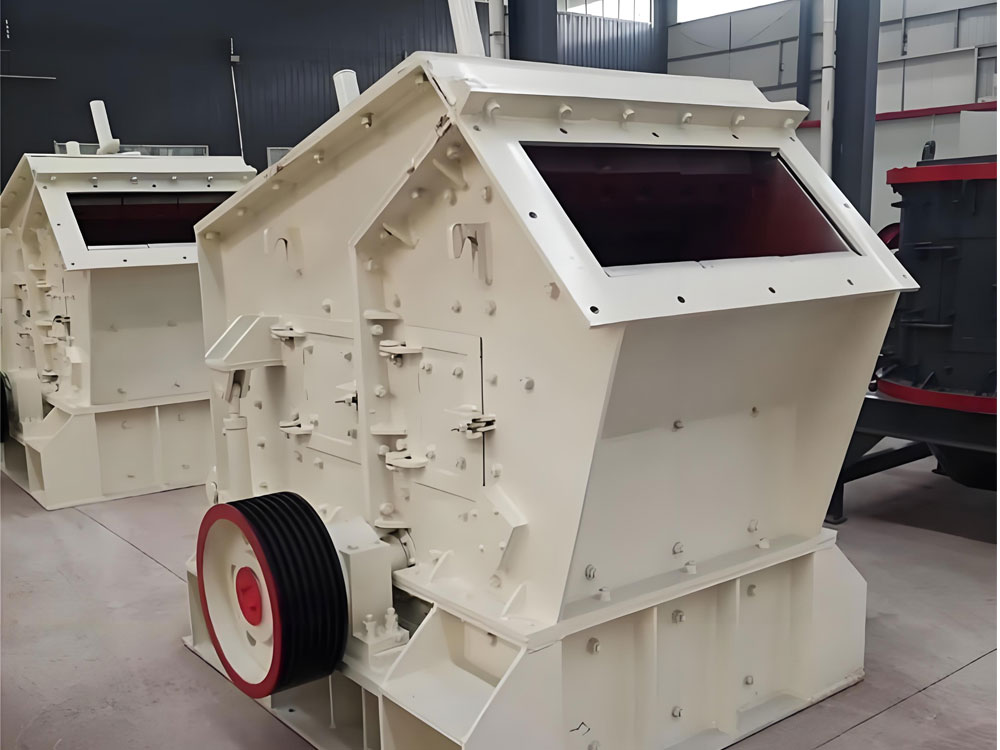

The NP13 Impact Crusher, part of Nordberg’s NP Series, is engineered to handle medium to hard rock types, making it ideal for aggregates production, recycling, and mining operations. Its design incorporates advanced technologies that optimize crushing efficiency while minimizing operational costs.
Key Specifications:
Feed Opening: 1,320 x 900 mm (52 x 35 inches)
Maximum Feed Size: Up to 600 mm (24 inches)
Capacity: 250–400 metric tons per hour (varies with material density and settings)
Power Requirement: 315 kW (422 hp)
Rotor Diameter: 1,300 mm (51 inches)
Weight: Approximately 28,000 kg (61,700 lbs)
Innovative Design Features:
Advanced Rotor System: The NP13’s rotor is designed for high inertia, ensuring consistent energy transfer to the material. This results in superior reduction ratios and uniform end-product shape, critical for high-quality aggregates.
Modular Wear Parts: The crusher’s wear components, such as blow bars and breaker plates, are easily replaceable, reducing downtime during maintenance.
Hydraulic Adjustment System: Operators can adjust the crusher’s settings (e.g., gap between rotor and impact apron) hydraulically, enabling quick adaptation to varying material properties.
Hybrid Drive Options: Some configurations offer hybrid power solutions, combining diesel and electric drives to enhance fuel efficiency and reduce emissions.
2. Applications in Quarry Operations
Quarrying demands equipment that can process large volumes of raw materials into precisely sized aggregates for construction, road building, and landscaping. The NP13 excels in this environment due to its versatility and reliability.
Key Advantages in Quarrying:
High Reduction Ratios: The NP13 reduces large limestone, granite, or basalt boulders into uniform aggregates (e.g., 0–20 mm or 0–40 mm) in a single pass, eliminating the need for secondary crushing stages.
Product Shape Control: Its impact crushing action produces cubical end products, which are highly sought after for concrete and asphalt mixes.
Mobility and Flexibility: When paired with a mobile chassis, the NP13 can be relocated across different quarry sites, optimizing resource utilization.
Case Study: Limestone Quarry in Texas, USA
A limestone quarry operator replaced an older jaw crusher with the NP13, achieving a 30% increase in production capacity. The crusher’s ability to handle abrasive materials with minimal wear on components also reduced maintenance costs by 20%.
3. Mining Applications: Durability in Harsh Conditions
In mining, equipment must withstand extreme conditions, including abrasive ores, high moisture content, and continuous operation. The NP13’s rugged construction and adaptive features make it suitable for primary or secondary crushing in open-pit mines and underground operations.
Key Benefits in Mining:
High Throughput: The crusher processes copper, gold, or iron ores efficiently, even at high moisture levels, thanks to its open rotor design and anti-clogging features.
Reduced Downtime: The NP13’s predictive maintenance tools, such as vibration sensors and real-time monitoring, alert operators to potential issues before they escalate.
Safety Enhancements: Features like automatic lubrication systems and remote-controlled operation minimize worker exposure to hazardous environments.
Case Study: Copper Mine in Chile
A copper mine integrated the NP13 into its primary crushing circuit, achieving a 25% reduction in energy consumption compared to traditional cone crushers. The mine also reported a 15% improvement in recovery rates due to the crusher’s ability to generate finer particle sizes for leaching processes.
4. Maintenance and Operational Efficiency
The NP13’s design prioritizes ease of maintenance, a critical factor in industries where downtime translates to significant financial losses.
Maintenance Highlights:
Quick-Change Wear Parts: Blow bars and impact plates can be replaced in under 30 minutes using standard tools.
Centralized Lubrication System: Automated lubrication reduces manual intervention and extends component lifespan.
Smart Monitoring: Integration with IoT platforms allows operators to track performance metrics, such as throughput and wear rates, in real time.
5. Sustainability and Environmental Impact
Modern quarries and mines are under increasing pressure to adopt eco-friendly practices. The NP13 addresses this through:
Energy Efficiency: Optimized rotor dynamics and hybrid drive options lower power consumption.
Noise Reduction: Sound-insulated components and enclosed structures reduce operational noise by up to 50%.
Recycling Capabilities: The crusher processes demolition waste and recycled concrete, supporting circular economy initiatives.
The NP13 Impact Crusher stands at the forefront of innovation in quarrying and mining. Its combination of high throughput, operational flexibility, and sustainability aligns with the evolving needs of modern industries. By reducing costs, enhancing safety, and minimizing environmental footprints, the NP13 not only meets today’s challenges but also paves the way for a more efficient and responsible future in material processing.
As global demand for raw materials continues to grow, investments in advanced technologies like the NP13 will be essential for companies aiming to stay competitive while adhering to global sustainability goals.
