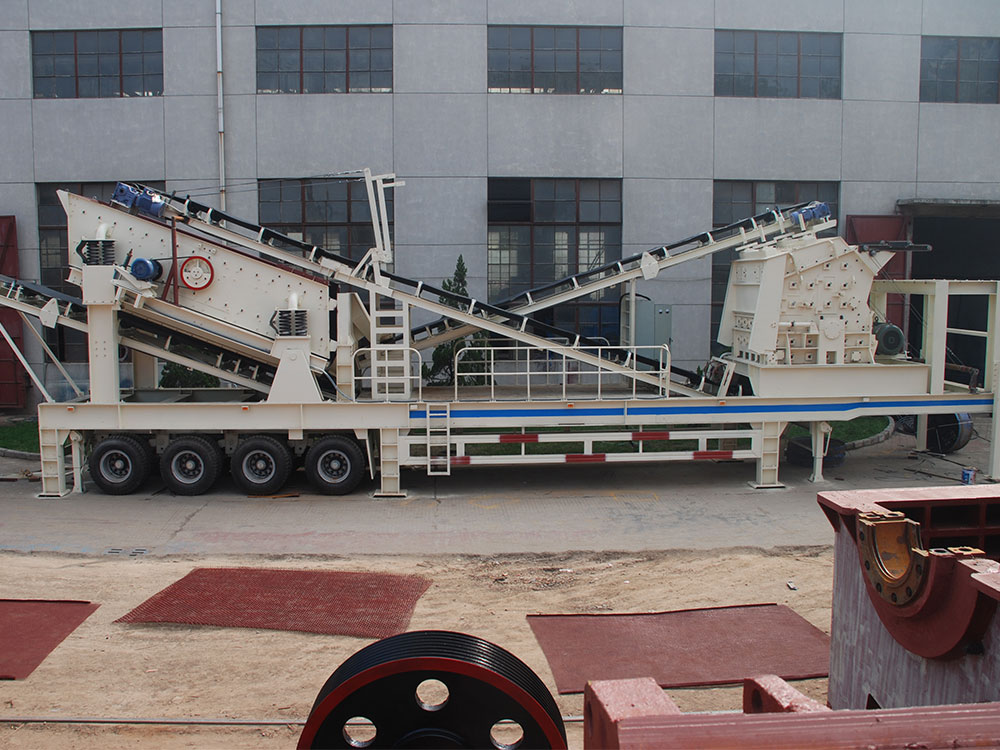

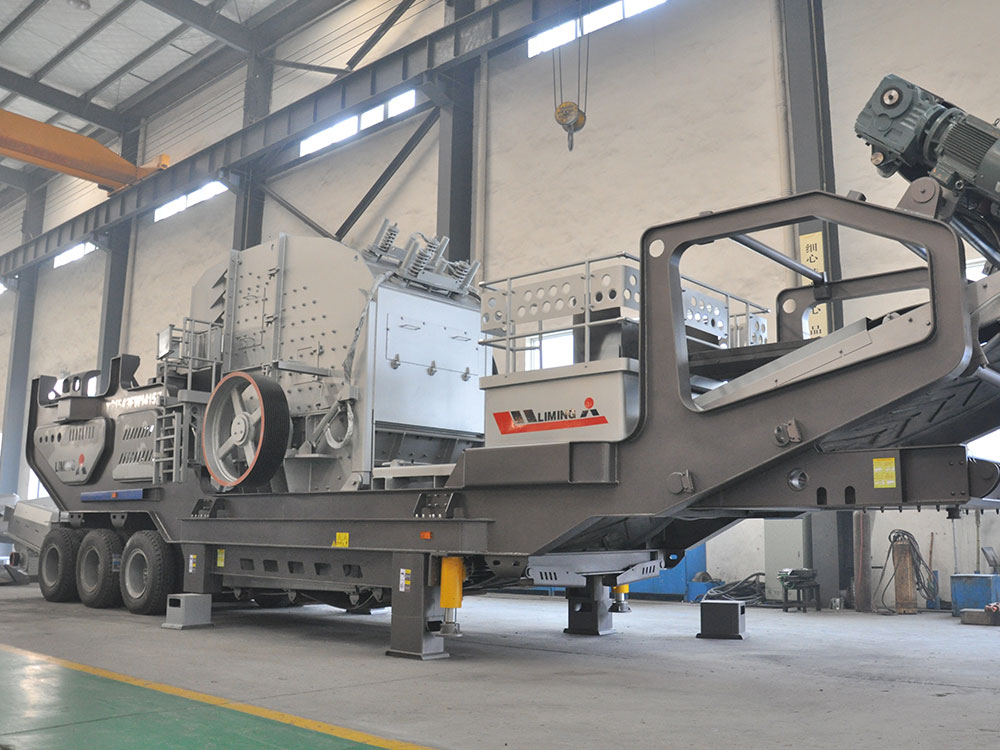

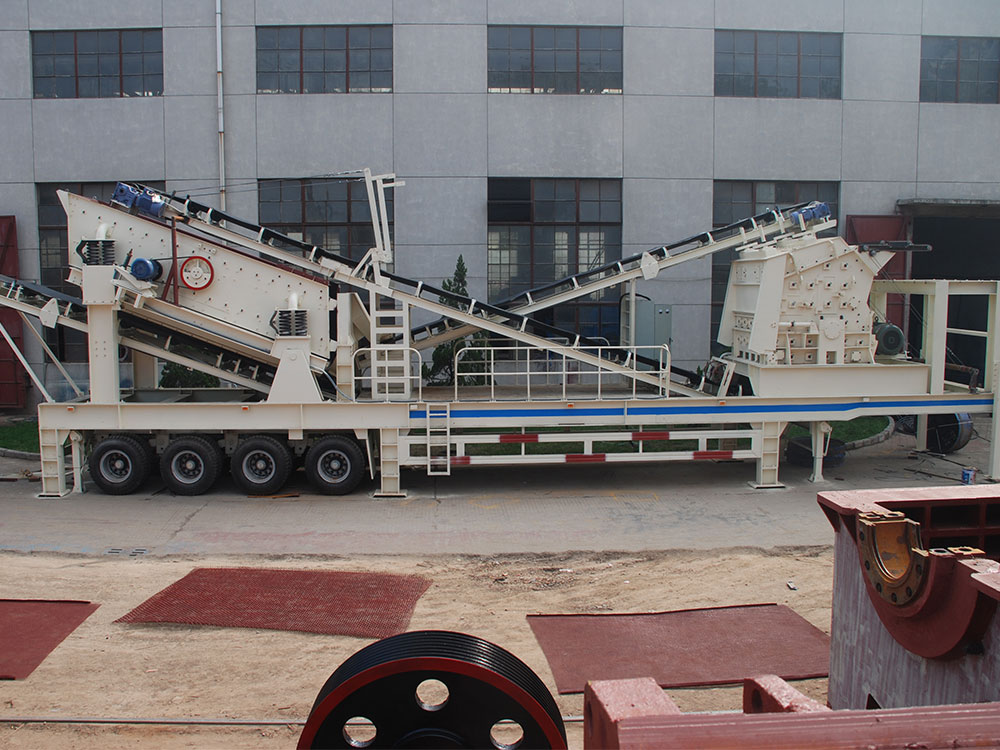

High Performance QS332 Mobile Cone Crusher

QS332 Mobile Cone Crusher belongs to one kind of mobile crushing plant, which combines the high efficient crushing capacity of cone crusher with the flexibility of mobile plant. The plant is designed with tyre or crawler type mobile mode, which is easy to be transferred and deployed quickly between different sites. It adopts cone crusher as the core crushing component, which has the features of large crushing ratio, high efficiency and low energy consumption, and can be configured with different crushing and screening components according to the customer's needs to satisfy the production needs in various aspects. The crushing and screening components can be configured according to customer requirements to meet multiple production needs.

Materials Iron ore, non-ferrous metal ores, basalt, granite, limestone, sandstone, pebbles, etc.
Application Mines, cement plants, sand and gravel industries, etc.
Capacity 500 t/h

CONTACT NOW down load to pdf

Product Details

Product Tags

QS332 Mobile Cone Crusher is widely used in mines, cement plants and gravel industry, which is good at medium and fine crushing of various rocks below 350 MPa, such as iron ore, non-ferrous metal ores and so on. The machine integrates the functions of receiving, crushing and conveying, and the optimised process gives it excellent performance in rock crushing, aggregate production and open pit mining. Different models can be combined to form a powerful crushing line to meet various needs.QS332 is the leader in the field of crushing with advanced design and excellent performance. Before operation, please check the equipment thoroughly to make sure that the parts are intact and the safety protection devices, such as safety valve and hydraulic locking device, are not abnormal. Operators need to wear labour protection equipment, and familiar with the operation manual. During the operation, pay attention to observe the status of the equipment, and stop the machine immediately for inspection in case of abnormal noise, vibration and other abnormalities. Reasonably adjust the feeding speed and discharge opening size according to the material characteristics. Maintain QS332 regularly, including cleaning the equipment, replacing worn parts, checking the lubrication system, etc., and tighten the fasteners to ensure stability and safety.

High Performance QS332 Mobile Cone Crusher Applications

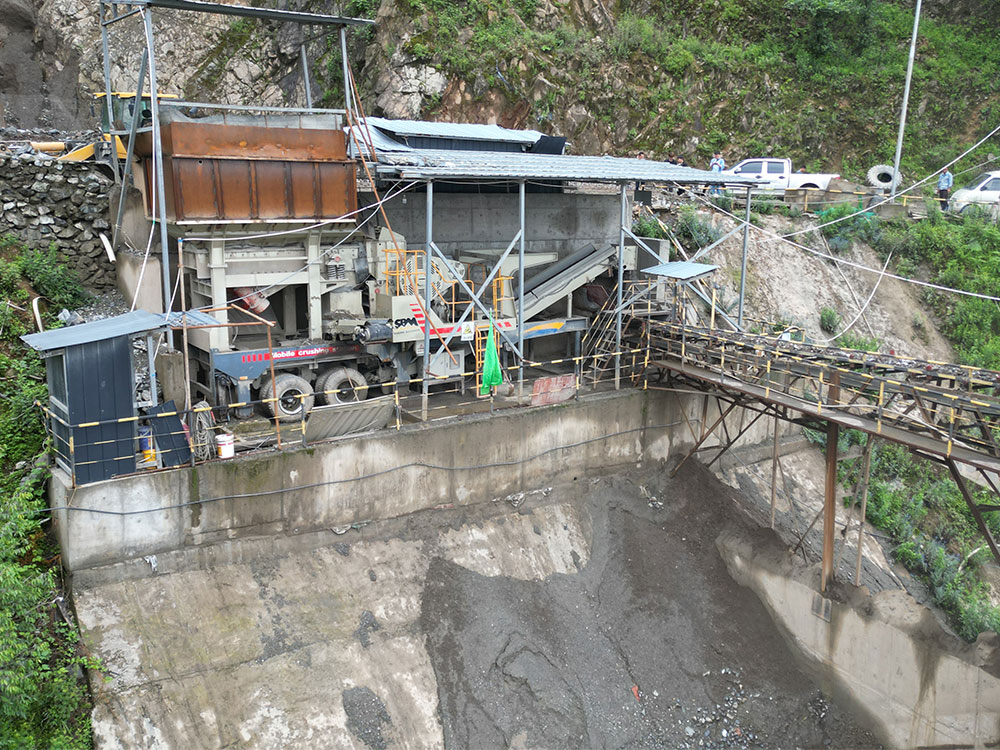

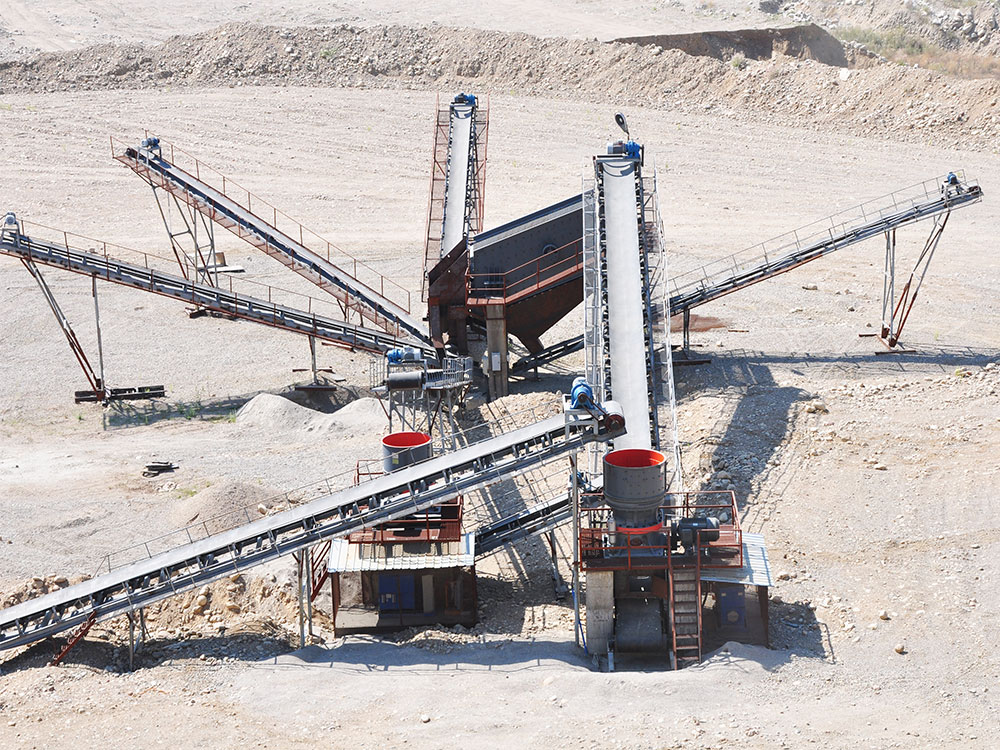

In the mining industry, QS332 mobile cone crusher plays a vital role. Whether it is iron ore, copper ore or other rocks and ore materials of various hardness, QS332 can quickly and evenly crush them to the required size range with its powerful crushing capacity. This efficient operation capability not only improves the processing efficiency of ore, but also reduces the energy cost, which brings significant economic benefits to mining enterprises. At the same time, the mobility of the QS332 Mobile Cone Crusher makes it easy to adapt to different mining environments, and it can be quickly put into production without fixed installation, which greatly improves the flexibility and efficiency of mining production.
In the metallurgical industry, QS332 mobile cone crusher also plays an important role. In the metallurgical process, various metal ores need to be crushed and screened for subsequent smelting and processing, and the QS332 provides high-quality crushing products for the metallurgical industry with its efficient crushing capacity and stable performance. By adjusting the size of the discharge opening, different discharge specifications can be easily achieved to meet the strict requirements of raw material particle size in the metallurgical process. In addition, the mobility of QS332 makes it play an excellent role in many production processes in the metallurgical industry, which improves the overall production efficiency.
In the chemical industry, QS332 mobile cone crusher also has its unique application value. The chemical production process often requires crushing and screening of various raw materials for subsequent chemical reactions and processing, and the QS332 provides high-quality crushing products for the chemical industry with its efficient crushing capacity and stable performance. At the same time, its mobility enables it to move flexibly in chemical production sites and adapt to different production environments and needs. In addition, QS332 has excellent wear resistance and service life, which enables it to run stably for a long time and reduces the production cost and maintenance cost of chemical enterprises.

High Performance QS332 Mobile Cone Crusher Advantages

High efficiency crushing and excellent grain shape

The QS332 Mobile Cone Crusher adopts advanced crushing technology, combining higher rotational speed with stroke, which significantly improves the crushing ratio and production efficiency. By optimising the motion parameters and crushing chamber design, it achieves selective crushing, increasing the proportion of fines and cubic content of the product, with excellent grain shape and reduced needles and flakes.

Strong adaptability and flexibility

Sensitive equipment configuration, according to the customer's requirements for the type of material and product in the process to provide flexible process plan configuration, such as single-cylinder hydraulic cone crusher, multi-cylinder hydraulic cone crusher, and so on. The cone crusher only needs to replace the fixed cone liner and dynamic cone liner, and the crushing cavity can be exchanged from the standard ultra-coarse cavity to the short-head ultra-fine cavity, so as to adapt to a wide range of product size requirements.

Stable, reliable and easy to maintain

QS332 Mobile Cone Crusher has a complete lubrication system, which automatically shuts down when the temperature is too high or the flow rate is slow, ensuring the continuous and stable operation of the equipment. The equipment is easy to operate and install, with low base vibration and low noise. The internal parts can be disassembled from the top without dismantling the frame or fastening bolts, and it is more convenient to replace the liners in daily life.

Energy saving and environmental protection and reduce consumption

The equipment adopts the design of thin oil lubrication system, which improves the service life of the equipment and reduces the number of oil-water mixing failures of the cone crusher, with good energy-saving effect. Equipped with a separate generator set, it is capable of power conversion with diesel fuel, and can operate normally even in the case of power failure and no electricity. At the same time, the sealing of the machine body is strengthened, and additional auxiliary dust collection equipment and noise elimination equipment are installed to meet the demand for green environmental protection.

High degree of automation and remote operation

QS332 Mobile Cone Crusher can be equipped with remote operation system and hydraulic adjustment of discharge opening, which improves the automation level of equipment operation. Hydraulic protection and hydraulic cavity cleaning functions make maintenance easier and more convenient, reducing downtime.

Excellent manoeuvrability and rapid deployment

As a mobile crushing plant, QS332 has excellent manoeuvrability, with a high vehicle floor, which makes it easy to drive in the rugged and harsh road environment of the crushing site, and quickly move into the reasonable construction area. Eliminating the need for cumbersome construction of steel-framed foundations for crushing saves time and costs.

High Performance QS332 Mobile Cone Crusher Working Principle

When the QS332 Mobile Cone Crusher is in operation, the rotation of the electric motor is transmitted to the transmission shaft of the cone crusher through the transmission device, such as pulley or coupling. The drive shaft drives the cone to swing around a fixed point under the force of the eccentric sleeve. This rotary motion makes the crushing wall of the crushing cone sometimes close to, and sometimes away from the surface of the molar wall solidly mounted on the adjusting sleeve. When the crushing wall is close to the molar wall, the material in the crushing chamber is subjected to strong extrusion and impact; and when the crushing wall leaves the molar wall, the material that has been crushed to the required particle size falls under its own gravity and is discharged from the bottom of the cone. The crushing process of cone crusher is a continuous and dynamic process. The motor continuously drives the eccentric sleeve to rotate, so that the crushing cone continuously does the rotary oscillation movement, so as to achieve the continuous crushing of materials. At the same time, the space structure inside the crushing chamber also plays a key role. A narrow space is formed between the cone and the wall, and this space changes continuously with the rotation of the cone, thus generating a large extrusion and friction force on the material, and achieving the effect of crushing and grinding. Besides, the QS332 mobile cone crusher is also equipped with a hydraulic system for adjusting the size of the crusher discharge opening. The hydraulic system can effectively control the gap between the crushing cone and the rolling mortar wall, so as to achieve precise control of the discharge size. This design not only improves the crushing efficiency, but also ensures the safe operation of the equipment. During the crushing process, if non-crushable objects, such as metal pieces, fall into the crusher, the design of QS332 Mobile Cone Crusher's support sleeve connected with the frame body by spring compression will play a protective role. When the unbreakable object enters into the crushing chamber, the spring will produce compression and deformation, discharging the foreign object and preventing the machine from being damaged. This insurance mechanism greatly improves the reliability and durability of the equipment.
