Superfine Grinding Mill

Mining T130X Super-fine Grinding Mill

Overview of mining T130X Super-fine Grinding Mill

T130X super-fine grinding mill is one of Liming brand famous grinders in the mining industry. The series mill is used in processing powder of mineral materials of metallurgy, building materials, chemical industry, mining, etc. Based on market investigation and analysis of suggestions from our former clients,new type T130X super-fine grinding mill has got unique structure and performance.

Feature of mining T130X Super-fine Grinding Mill

1, The main frame and the base are soft-linked , which improves the precision of the classifier.

2, Elastic sleeve pin sets couplings are adopted between machine body and reducer. Set maintenance platform.

3, The classifier has the characteristics of energy-saving, precision, good process control mobility and high degree of automation.

Reducer and motor are connected by V-belt which is conducive to overload protection.

4, Bypass powder collector is adopted. High-density blades are adopted on classifier.


Principle of mining T130X Super-fine Grinding Mill

T130X super-fine grinding mill is designed to make super fine powder in a production line . Large materials are crushed by jaw crusher at first step , then the crushed materials go to the hopper , then to the grinding chamber for grinding by vibrating feeder . And the closed airflow circulation system with negative pressure can reduce pollution to the environment .


parameter of mining T130X Super-fine Grinding Mill

1) Mainframe parameters


Item Unit Specifications &Technical data
Quantity of roller pcs 4
Diameter of roller x Height mm Ф410×210
Diameter of ring x Height mm Ф1300×210
Rotation speed rmp 103
Max. feeding size mm <30
Output size mm 0.074—0.038
Capacity t/h 4-13
Weight t 18


(1) capacity in the table is referred to calcite, under the condition of 80% passing though.
(2) Any change of parameters and shape shall be subject to the usage and maintenance manual instruction with delivery.

2) Power of equipped systems


Name Item Unit Specifications& Technical data
Motor for mainframe Model Y280S-4
Power kw 75
Rotating speed rpm 1480
Adjustable speed motor for classifier Model Y160L-4
Power kw 15
Rotating speed rpm 1460
Motor for elevator Model Y100L2-4
Power kw 3
Rotating speed rpm 1430
Motor for blower Model Y280M-4
Power kw 90
Rotating speed rpm 1480

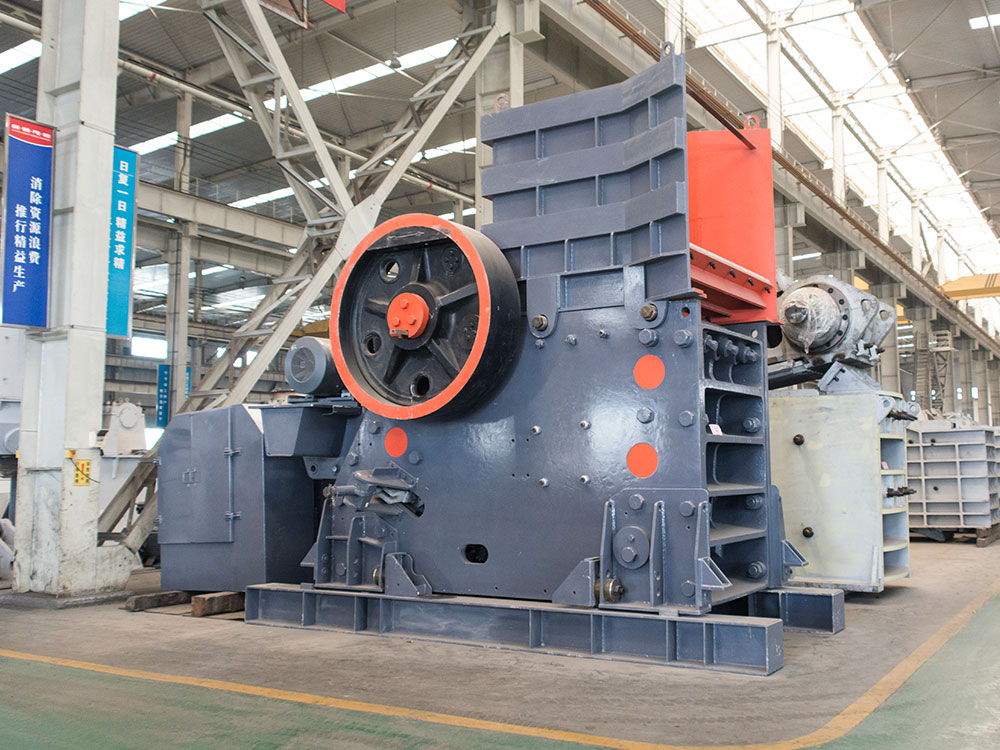

Motor for Jaw Crusher Jaw crusher Model PE 250×400
Model Y180L-6
Power kw 15
Rotating speed rpm 970
Electromagnetic vibration feeder Model GZ3F
Power W 200
