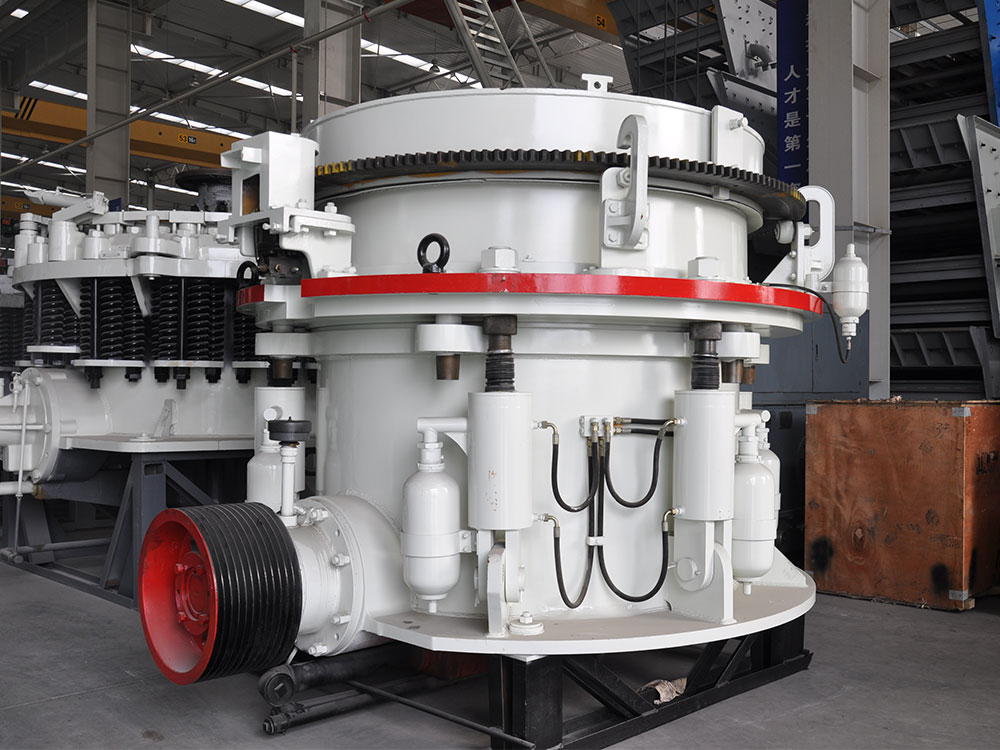

Innovative design highlights of CH890i cone crusher

CH890i is specially designed for medium crushing of hard ores, and is combined with an intelligent control system to achieve efficient crushing and precise control. It adopts a single-cylinder hydraulic structure, including a moving cone, an eccentric sleeve, a hydraulic cylinder and an intelligent control system module. The main shaft adopts a floating two-end support design to enhance the load-bearing capacity and maintain the compactness of the equipment. It is equipped with a positive pressure dustproof sealing system to prevent lubricating oil from contaminating the bearings and extend the service life. The constant crushing chamber design maintains stable feeding and processing capacity during the liner wear cycle, reducing efficiency fluctuations caused by liner wear. A variety of eccentric distances and chamber types are available to meet the requirements of different ore hardness and particle size.‌

Materials Limestone, quartz, diabase, iron ore, gold ore, copper ore, etc.
Application Concrete mixing station, dry mortar, power plant desulfurization, quartz sand, etc.
Capacity 400 t/h

CONTACT NOW down load to pdf

Product Details

Product Tags

It adopts a single-cylinder hydraulic drive design, and uses a hydraulic cylinder to realize the lifting of the movable cone, complete the discharge port adjustment, overload protection and cavity clearing functions, simplify the mechanical structure and improve the response speed. The main shaft adopts a hydraulic support design at both ends, which increases the strength by 65% and enhances the load-bearing capacity. It provides 6 optional cavity types to meet the requirements of different ore hardness and particle size, optimize the crushing ratio and production capacity, and modular liner design. Bolt fixing replaces welding to reduce 90% maintenance time. Equipped with ACS, it monitors the operating status of the crusher in real time, automatically adjusts the discharge port to compensate for liner wear, and ensures stable discharge particle size. Hydroset™ hydraulic protection system: integrated overload protection function, automatically releases pressure and expands the discharge port when foreign objects enter to avoid equipment damage. With a maximum processing capacity of 950 tons/hour (closed-loop operation), a motor power of 750kW, it is suitable for high-volume secondary crushing. It uses the My Sandvik IoT platform to support remote monitoring of equipment data, ordering of spare parts and maintenance planning. It is designed for hard ores (iron ore, copper ore, granite) and is suitable for large mines and quarries. It works in conjunction with screening equipment to increase the proportion of fine-grained products (-12mm) to 60% and reduce the circulating load. It is compatible with intelligent mine management systems and supports multi-device linkage and real-time data analysis.

Innovative design highlights of CH890i cone crusher Applications

Metal ore processing

This crushing equipment is designed for the secondary and fine crushing of hard metal ores such as iron ore, copper ore, tungsten and molybdenum ore, and is particularly suitable for the secondary crushing of large mines. Its powerful processing capacity is up to 950 tons/hour (closed circuit conditions), which can significantly increase the proportion of fine-grained products (-12mm) to 60%, which greatly optimizes the subsequent mineral processing efficiency. Through precise crushing control, the equipment can ensure uniform ore particle size and provide high-quality raw materials for subsequent smelting processes.

Non-metallic ore crushing

This equipment also performs well in the crushing of high-hardness rocks such as granite, sandstone, and quartzite. It can meet the large-scale needs of quarries and sand and gravel production, ensuring that the crushed rock particle size meets the standards of construction, road construction and other fields. Through the optimized crushing chamber design and efficient crushing mechanism, the equipment can easily cope with the challenges of high-hardness rocks, improve production efficiency and reduce operation and maintenance costs.

Sand and gravel aggregate production

In the field of sand and gravel aggregate production, this crushing equipment is widely used in the secondary and fine crushing of construction sand and concrete aggregates. When used in conjunction with screening equipment, it can achieve closed-loop circulation and ensure the improvement of the qualified rate of finished products. Whether it is common materials such as river pebbles and limestone, or other materials with special requirements, the equipment can provide stable crushing performance and support the efficient operation of the sand production line.

Cement and refractory materials

In the cement production process, the crushing equipment can crush raw materials such as limestone and coal gangue to provide intermediate products with uniform particle size for cement production. At the same time, it can also process waste such as metallurgical slag and refractory waste to achieve resource recycling. This feature not only helps to reduce production costs, but also reduces environmental pollution and enhances the social responsibility of enterprises.

Metallurgical raw material processing

For the crushing of metallurgical raw materials such as iron ore and copper ore, the equipment can also meet the medium crushing needs before smelting. It can handle high-hardness materials (≤450MPa), such as alloy waste, slag, etc., to ensure that the particle size of the crushed materials meets the requirements of the smelting process. In addition, the equipment is also suitable for the fine crushing of chemical materials such as glass raw materials and corundum to ensure uniform and stable particle size and provide high-quality raw materials for subsequent processes.

Innovative design highlights of CH890i cone crusher Advantages

High-yield and high-efficiency crushing capacity

The high-efficiency crushing equipment is equipped with a 750-kilowatt high-power motor. This powerful power source ensures that the equipment can provide greater crushing force at the maximum eccentricity, thereby meeting the needs of high-yield secondary crushing operations. This feature enables the equipment to process a large amount of material in a short time, significantly improving production efficiency and reducing production costs.

‌Strengthening structural design to improve reliability

In order to ensure the durability and stability of the equipment, the high-efficiency crushing equipment has been fully optimized in structural design. The main shaft strength has been increased by 65%, which makes the equipment more stable and reliable when subjected to high-intensity crushing operations. At the same time, the upper and lower frame castings have also been optimized and strengthened by 50%, further improving the overall durability of the equipment. These structural improvements not only extend the service life of the equipment, but also reduce maintenance costs.

Fast maintenance and safety

In terms of maintenance, the high-efficiency crushing equipment uses bolted linings instead of traditional welding methods. This innovative design reduces maintenance time by 90%, making operation more convenient and safer. In addition, the equipment is also equipped with complete safety protection devices, such as emergency stop buttons, safety warning lights, etc., to ensure the safety of operators during operation.

Intelligent monitoring and data optimization ‌

This high-efficiency crushing equipment integrates the My Sandvik intelligent system, which can monitor equipment operation data in real time and optimize production efficiency. Through remote monitoring, operators can understand the equipment's operating status, fault warnings, maintenance needs and other information in real time, so as to make timely decisions to extend the equipment's normal operation time. This intelligent system not only improves the equipment's operating efficiency, but also reduces the cost of manual intervention.

Multiple chamber types to meet different needs ‌

In order to meet the diverse production requirements of different customers, this high-efficiency crushing equipment provides 6 optional chamber types. By replacing the liner, the crushing particle size can be easily adjusted to achieve flexible and diverse production needs. This feature makes the equipment have a wide range of application prospects in the fields of ore processing, building material recycling and aggregate production.

‌Hydraulic protection and automatic adjustment ‌

In order to ensure the stable operation of the equipment and reduce the risk of downtime, this high-efficiency crushing equipment is equipped with a hydraulic Hydroset® system. The system can realize automatic adjustment and overload protection of the discharge port. When the equipment encounters overload or failure, it can respond quickly and take measures to avoid equipment damage. This automatic adjustment function not only improves the operating stability of the equipment, but also reduces the downtime caused by failure.

Innovative design highlights of CH890i cone crusher Working Principle

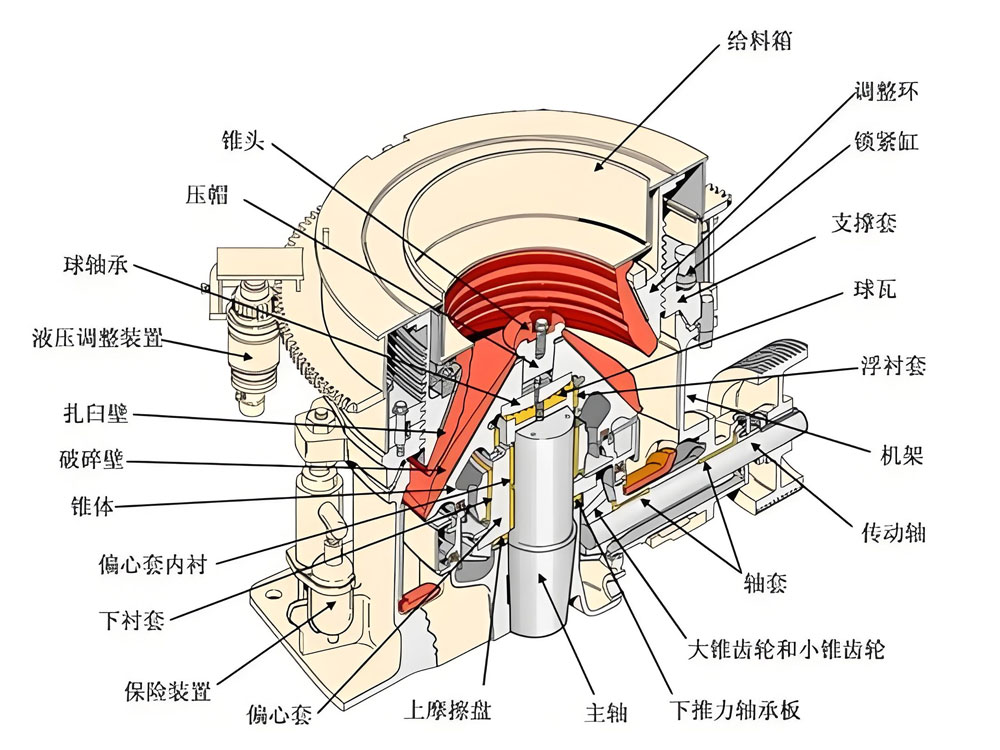

As the core power source of the crushing equipment, the motor drives the eccentric sleeve to rotate through a precisely designed bevel gear set. This rotational action in turn drives the crushing cone (also known as the moving cone) to perform periodic pendulum motion around its center line. This motion mode is designed to achieve efficient and stable crushing operations. Under the action of the eccentric mechanism, the moving cone will alternately approach and move away from the fixed cone (also known as the mortar wall). This alternating motion forms a continuously changing crushing chamber space, providing a sufficient crushing environment for the material. When the moving cone approaches the fixed cone, the material is strongly squeezed; and when the moving cone moves away from the fixed cone, the material is impacted and bent, thereby achieving crushing. This composite crushing mechanism enables the material to be refined more effectively.
In the crushing chamber, multi-particle materials will form a laminated crushing state. In this state, large particles will be crushed first and gradually refined into smaller particles. This crushing method not only improves the yield rate, but also significantly reduces energy consumption, making the entire crushing process more economical and efficient. The crushed material will be discharged smoothly from the bottom of the crushing chamber under the action of gravity. This design ensures the continuity and stability of the crushing operation. At the same time, springs or hydraulic systems are cleverly configured inside the equipment. When the equipment encounters an overload, these systems will automatically discharge foreign matter through the displacement of the support sleeve, thereby effectively protecting the core components from damage. In order to meet different crushing needs, the equipment also provides a high degree of flexibility. Users can change the shape and size of the crushing chamber by adjusting the movement parameters of the eccentric sleeve, such as rotation speed, swing amplitude, etc., so as to control the particle size of the discharge. In addition, replacing the fixed cone or dynamic cone liner of different specifications can further adjust the crushing effect to adapt to various complex crushing scenarios.
