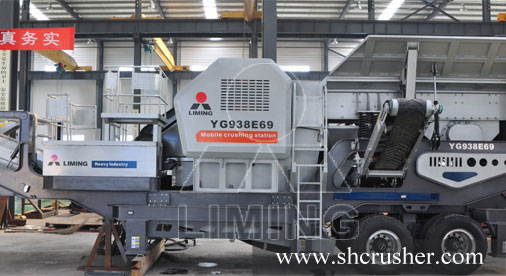

Closed-Circuit Type Mobile Crusher:

The Closed-Circuit type mobile crusher takes one crushing unit as the main part and adopts the single-machine configuration. It can re-feed the materials through its own closed-loop system. This unit is integrated and fully automatic. Its self-mounted system includes conveying and screening devices, so a complete and independent crushing can be achieved. The Closed-Circuit type mobile crushing plant is a fully-self-mounted belt conveyor.

Main technical data:

  • Closed-circuit Mobile Cone Crusher Crushing plant

    Model
    Technical data
    Y3S154Y55B Y3S184Y75B Y3S186Y160B Y3S216Y220B
    Transportation Length (mm) 14500 14500 16300 16300
    Transportation Width (mm) 2600 2700 3000 3200
    Transportation Height (mm) 4200 4200 4500 4500
    Maximum Length (mm) 15300 15300 17000 17000
    Maximum width (mm) 2800 3150 3150 3500
    Maximum Height (mm) 5600 6000 6400 6400
    Weight (T) 41 47 63 64
    Tire Configuration Dualaxial Dualaxial Triaxial Quadrqxial
    Cone crusher PYB900 CS75 CS160 HPC-220
    Belt conveyor under vibraitng screen B650X7M B650X7M B800X8M B1000X8M
    Belt conveyor above Vibrating Screen B650X14M B650X14M B800X16M B1000X16M
    Main belt conveyor B650X8.6M B650X8.6M B800X9M B1000X9M
    Vibrating Screen 3YZS1548 3YZS1848 3YZS1860 3YZS2160
  • Closed-circuit Mobile Impact Crusher Crushing plant

    Model
    Technical data
    Y3S154F1010B Y3S184F1210B Y3S186F1214B Y3S216F1310B
    Transportation Length (mm) 15600 16200 17200 18000
    Transportation Width (mm) 2700 2800 2900 3300
    Transportation Height (mm) 4200 4400 4400 4500
    Maximum Length (mm)
    Maximum width (mm) 2800 3150 3150 3500
    Maximum Height (mm) 5600 6000 6400 6700
    Weight (T) 45 52 58 71
    Tire Configuration Dualaxial Triaxial Triaxial Quadrqxial
    Impact crusher PF-1010 PF-1210 PF-1214 PF-1315
    Belt conveyor under vibrating screen B650X7M B650X7M B800X8M B1000X8M
    Belt conveyor above Vibrating Screen B650X15M B650X16M B800X17M B1000X17M
    Main belt conveyor B650X8.6M B650X9M B800X10M B1000X11M
    Vibrating screen 3YZS1548 3YZS1848 3YZS1860 3YZS2160
  • Closed-circuit Mobile Vertical Shaft Impact Crusher Crushing plant

    Model
    Technical data
    Y3S154VSI71B Y3S184VSI81B Y3S186VSI92B
    Transportation Length (mm) 15800 16000 17200
    Transportation Width (mm) 2700 2800 2900
    Transportation Height (mm) 4200 4400 4400
    Maximum Length (mm) 17300 17500 18800
    Maximum Width (mm) 2800 3150 3150
    Maximum Height (mm) 5600 6000 6400
    Weight (T) 41 46 58
    Tire Configuration Dualaxial Dualaxial Triaxial
    Vertical Shaft Impact crusher VSI-7611 VSI-8518 VSI-9526
    Belt conveyor under vibrating screen B650X7M B650X7M B800X8M
    Belt conveyor above Vibrating Screen B650X15M B800X15M B1000X17M
    Main belt conveyor B650X8.6M B800X9M B1000X10M
    Self-loaded belt conveyor B800X3M B800X3M B1000X3M
    Vibrating screen 3YZS1548 3YZS1848 3YZS1860

Note:

1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.
