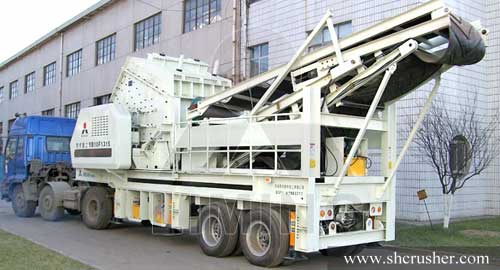

Standard Type Mobile Crusher:

The standard type mobile crusher takes one crushing unit as the main part, adopting a single-machine configuration.

Main technical data:

• Mobile Jaw Crusher Crushing Plant

  Model Technical data	YG830E46	YG938E57	YG938E69	YG114E710	YG134E912
  Transportation Length (mm) (If there is an diesel generator)	8600	9800	11000	13000	14000
  	10000	11600	12000	14000	15500
  Transportation Width (mm)	2450	2450	2450	2450	3000
  Transporation Height (mm)	3800	3500	3600	4500	4800
  Maximum Length (mm)	12000	13300	13200	15000	17000
  Maximum Width (mm)	2800	2900	2900	2900	3100
  Maximum Height (mm)	3800	4100	4600	5800	5800
  Weight (T)	26	32	41	55	81
  Tire Configuration	Uniaxial	Dualaxial	Triaxial	Triaxial	Quadrqxial
  Jaw crusher	PE400×600	PE500×750	PE600×900	PE750×1060	PE900×1200
  The maximum Feeding size (mm)	350	425	480	630	750
  Discharge opening size(mm)	40-100	50-100	65-160	80-140	95-165
  Capacity (T/h)	15-60	50-100	60-130	100-250	160-380
  Vibrating Feeder	GZD850×3000	GZD960×3800	GZD960×3800	GZD1100×4200	GZD1300×4900
  Belt conveyor	B650×7M	B650×7.5M	B800×8M	B1000×9M	B1200×11M

• Mobile Impact Crusher Crushing Plant

  Model Technical data	Y3S154F1010	Y3S184F1210	Y3S186F1214	Y3S216F1315
  Transportation Length (mm)	11000	11600	12800	13500
  Transportation Width (mm)	2450	2800	2800	3000
  Transportation Height (mm)	3900	4400	4400	4500
  Maximum Length (mm)	12700	13500	15500	16200
  Maximum width (mm)	2800	3150	3150	3500
  Maximum Height (mm)	5700	6000	6400	6700
  Weight (T)	34	40	45	56
  Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial
  Impact crusher	PF-1010	PF-1210	PF-1214	PF-1315
  Feed opening size	400*1080	400*1080	400*1430	860*1520
  The maximum Feeding size (mm)	350	350	350	500
  Capacity (T/h)	50-250	70-300	90-400	120-450
  Belt conveyor	B650X7M	B650X7M	B800X8M	B800X8M
  Vibrating Screen	3YZS1548	3YZS1848	3YZS1860	3YZS2160

• Mobile Cone Crusher Crushing Plant

  Model Technical data	Y3S154Y55	Y3S184Y75	Y3S186Y160	Y3S216Y220
  Transportation Length (mm)	12000	12000	13500	13500
  Transportation Width (mm)	2550	2800	2800	3000
  Transportation Height (mm)	3900	3900	4200	4200
  Maximum Length (mm)	13700	13700	15200	15200
  Maximum Width (mm)	2800	3150	3150	3500
  Maximum Height (mm)	5700	5700	6400	6400
  Weight (T)	34	39	54	53
  Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial
  Cone crusher	PYB900	CS75	CS160	HPC-220
  The maximum Feeding size (mm)	115	102	C-150 F-76	C-225 F-86
  Discharge opening size (mm)	15-50	9-38	C13 F6>	C13 F6
  Capacity (T/h)	50-90	45-165	C120-240、F55-180	C150-430、F90-260
  Belt conveyor	B650X7M	B650X7M	B800X8M	B1000X8M
  Vibrating Screen	3YZS1548	3YZS1848	3YZS1860	3YZS2160

• Mobile vibrating feeder and cone crusher plant

  Model Technical data	YG830Y55	YG930Y75	YG938Y160	YG114Y220
  Transportation Length (mm) (If there is generator)	11000	11300	12000	13000
  	12500	13000	13500	14500
  Transportation Width (mm)	2450	2450	2450	2450
  Transportation Height (mm)	4200	4200	4500	4500
  Maximum Length (mm)	14000	14300	17000	18000
  Maximum Width (mm)	2800	2900	2900	2900
  Maximum Height (mm)	4700	4700	5000	5000
  weight (T)	32	36	51	55
  Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial
  Cone crusher	PYB900	CS75	CS160	HPC-220
  Maximum Feeding size	115	102	C-150 F-76	C-225 F-86
  Discharge opening	15-50	9-38	C13、F6	C13、F6
  capacity (T/h)	50-90	45-165	C120-240 F55-180	C150-430 F90-260
  Vibrating Feeder	GZD850X300	GZD850X300	GZD960X380	GZD1100X4200
  Belt conveyor	B650X10M	B650X10M	B1000X12M	B1000X13M

• Mobile Vertical Shaft Impact Crusher Crushing Plant

  Model Technical data	Y3S154VSI71	Y3S184VSI81	Y3S186VSI92	Y3S216VSI14
  Transportation Length (mm)	11000	11300	13500	14000
  Transportation Width (mm)	2450	2800	2800	3000
  Transportation Height (mm)	4000	4200	4200	4400
  Maximum Length (mm)	13000	13300	14500	15000
  Maximum Width (mm)	2800	3150	3150	3500
  Maximum Height (mm)	5700	6000	6400	6700
  Weight (T)	32	36	48	61
  Tire Configuration	Dualaxial	Dualaxial	Dualaxial	Triaxial
  Vertical Shaft Impact crusher	VSI-7611	VSI-8518	VSI-9526	VSI-1140
  The maximum Feeding size (mm)	34	38	43	59
  Capacity (T/h)	60-180	100-260	150-380	225-520
  Belt conveyor under vibraitng screen	B650X7M	B800X7M	B800X8M	B1000X8M
  Self-loaded belt conveyor	B800X3M	B800X3M	B1000X3M	B1200X3M
  Vbrating screen	3YZS1548	3YZS1848	3YZS1860	3YZS2160

Note:

1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.
