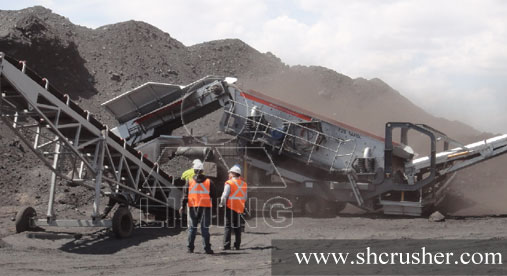

Crawler Type Mobile Crusher:

Crawler type mobile crusher (also named tracked mobile crusher),combined with crushing & screening plant, is designed and researched by our experienced engineers according to the customers' requirement. It is of high cost performance, reliable & beatiful structure. Its technology is as advanced as the internationl level. The mobile crushing plant is widely used in road & bridge construction, metallurgy and other fileds to crusher and screen.

Features of Crawler Type Mobile Crusher:

1. Perfect performance of Cummins diesel engine. It is low consumption, low noise, reliable performace. And we can equip a military cryogenic preheat starting device, so that the crushing plant can be started to work even the temperature is bleow 25 degrees centigrade.

2. The chassis adopts crawler rigid ship form structure. It is of high intensity, easy to be transported on the different landform like mountain and marsh.

3. It adopts the motor of high-torque and strong driving force. Crawing system adopts full-power variable open hydraulic system which is of excellent performance, high reliability. It is able to make full use of engine power. The main hydraulic components (pumps, valves, etc.) is imported from Japan.

4. Controlling system adopts imported and advanced servo system. It is easy and exact to be controlled to stepless crawl.

5. The crushing & screening plant adopts our company's advanced product. Its structure is compact. The screen is installed in 20 degree angle, so the screening is highly efficient.

Technical Data:

• Mobile Jaw Crusher Crushing Plant

  Vibrating Feeder	GZD-960X3800	GZD-960X3800	GZD-960X3800
  Jaw Crusher	PE600X900	PE750X1060	PE500X750
  Main Belt Width (mm)	800	1000	650
  Main Belt Discharge Height (mm)	2700	2800	2700
  Side Belt Width (mm)	500	650	500
  Side Belt Discharge Height (mm)	2700	2900	2700
  Power (KW)	150	220	150
  Transportation Length (mm)	13000	14000	12500
  Transportation Width (mm)	3050	3180	3050
  Transporation Height (mm)	3500	4300	3400
  Transporation Weight (T)	39	54	33

• Mobile Cone Crusher Crushing Plant

  Cone Crusher	CS75	CS160	HP220
  Vibrating Feeder	GLD1500/4	GLD1500/5	GLD1500/5
  Up Hopper Volume (M3)	4	5	5
  Feeding Height (mm)	2700	2900	2900
  Main Belt Width (mm)	800	1000	1000
  Main Belt Discharge Height (mm)	2700	2800	2800
  Power (KW)	150KW	300KW	400KW
  Transportation Length (mm)	12000	12500	12500
  Transportation Width (mm)	3050	3050	3050
  Transporation Height (mm)	3700	3900	3900
  Transporation Weight (T)	38	45	50

• Mobile Impact Crusher Crushing Plant

  Vibrating Feeder	GZD-960X3800	GZD-960X3800	GZD-960X3800
  Impact Crusher	PF1010	PF1210	PF1214
  Main Belt Width (mm)	800	800	1000
  Main Belt Discharge Height (mm)	2700	2700	2700
  Side Belt Width (mm)	500	500	500
  Side Belt Discharge Height (mm)	2700	2700	2700
  Power (KW)	150KW	200	300
  Transportation Length (mm)	12000	13000	13000
  Transportation Width (mm)	3050	3050	3050
  Transporation Height (mm)	3500	3800	3800
  Transporation Weight (T)	36	42	48

• Mobile Vibrating Screen Crushing Plant

  Vibrating Screen	2ZS1848	3YZS1860	3YZS2160
  Closed hopper volume (M3)	5	6	8
  Closed hopper Height (mm)	4300	5000	5000
  Feeding Belt	B800X7.2	B1000X8.5	B1000X8.5
  Screen Under Belt	B800X7	B1000X8	B1000X8
  Screen Under Belt Discharge Height (mm)	3500	3500	3500
  Side Blet	B500X5	B650X5	B650X5
  Side Blet Discharge Height (mm)	3500	3500	3500
  Front Belt	B650X7	B800X8	B800X8
  Front Belt Discharge Height (mm)	2800	3000	3000
  Power (KW)	120	150	180
  Transportation Length (mm)	12000	13500	1400
  Transportation Width (mm)	3050	3200	3400
  Transporation Height (mm)	3500	4100	4100
  Transporation Weight (T)	30	36	42
