Single-machine Combination Crushing Series Mobile Crusher:

This series of mobile crushers are single-machine Combination Crushing Series. The type mobile crusher can be flexibly configured into one-stage crushing, two-stage crushing and three-stage crushing according to different demands from different customers. In addition, we can also optimize the combination for each stage crushing and screening, and try our best to meet the customers’ demands. The series of mobile crushers are widely used for the crushing and screening work in the road and bridge construction, urban construction, metallurgy, energy sectors.

Main technical data:

• Mobile combination plant with vibrating feeder, impact crusher & vibrating screen

  Model Technical data	Y3S54G83F00	Y3S84G83F20	Y3S86G93F24	Y3S26G14F35
  Transportation Length (mm) (If there is a diesel generator)	17000	17600	16800	17000
  	17000	17600	17800	18500
  Transportation Width (mm)	2700	2900	2900	3300
  Transportation Height (mm)	3900	4400	4400	4500
  Maximum Length (mm)	18500	19200	20800	21500
  Maximum Width (mm)	2800	3150	3150	3500
  Maximum Height (mm)	5600	6000	6600	6600
  Weight (T)	49	56	66	78
  Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial
  Impact crusher	PF-1010	PF-1210	PF-1214	PF-1315
  Belt conveyor under Vibrating Screen	B650X7M	B650X7M	B800X8M	B1000X8M
  Belt conveyor above Vibrating Screen	B500X13M	B650X14M	B800X15M	B1000X16M
  V shape belt conveyor			B800X14M	B1000X15M
  Belt conveyor for re-crushing material	B500X7M	B500X8M	B800X8.5M	B1000X8.5M
  Vibrating Feeder	GZD-850X3000	GZD-850X3000	GZD-960X3800	GZD-1100X4200
  Vibrating Screen	3YZS1548	3YZS1848	3YZS1860	3YZS2160

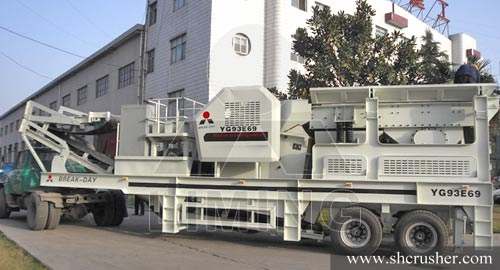

• Jaw crusher & Vibrating screen combination mobile crushing plant

  Model Technical data	Y3S23G91E46B	Y3S54G83E57B	Y3S86G93E69K	Y3S26G14E71K
  Transportation Length (mm) (If there is a diesel generator)	12500	16400	16800	16800
  	12500	17000	17300	18600
  Transportation Width (mm)	2700	2700	2900	3300
  Transportation Height (mm)	3900	3900	4200	4500
  Maximum Length (mm)	14000	18400	19000	19000
  Maximum Width (mm)	2800	2900	3150	3500
  Maximum Height (mm)	5600	6000	6400	6400
  Weight (T)	34	46	62．5	78
  Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial
  Jaw Crusher	PE400X600	PE500X750	PE600X900	PE750X1060
  Belt conveyor under Vibrating Screen	B500X6M	B650X7M	B800X8M	B800X8M
  Belt conveyor above Vibrating Screen	B500X10.5M	B650X13M	B800X15M	B1000X16M
  V shape belt conveyor			B800X14M	B1000X15M
  Belt conveyor for re-crushing material	B500X6M	B650X8M	B650X6M	B650X7M
  Vibrating Feeder	GZD-950X150	GZD-850X3000	GZD-960X3800	GZD-1100X4200
  Vibrating Screen	3YZS1237	3YZS1548	3YZS1860	3YZS2160

• Cone crusher & Vibrating screen combination mobile crushing plant

  Model Technical data	Y3S54G83Y55K	Y3S54G83Y75K	Y3S86G14Y160K	Y3S26G14Y220K
  Transportation Length (mm) (If there is a diesel generator)	13500	14000	16700	16700
  	14500	16000
  Transportation Width (mm)	2700	2700	2900	3300
  Transportation Height (mm)	4000	4000	4400	4400
  Maximum Length (mm)	14000	14600	19000	19000
  Maximum Width (mm)	2800	2800	3150	3500
  Maximum Height (mm)	6200	6200	6700	6700
  Weight (T)	48	54	72	71
  Tire Configuration	Dualaxial	Dualaxial	Triaxial	Triaxial
  Cone crusher	PYB900	CS75	CS160	HPC-220
  Belt conveyor under Vibrating Screen	B650X7M	B650X7M	B800X8M	B1000X8M
  Belt conveyor above Vibrating Screen	B650X15M	B650X15M	B800X15M	B1000X16M
  V shape belt conveyor	B650X14M	B650X14M	B800X14M	B1000X15M
  Belt conveyor for re-crushing material	B500X3.5M	B500X4M	B650X3M	B650X3M
  Vibrating feeder	GZD-850X3000	GZD-850X3000	GZD-1100X4200	GZD-1100X4200
  Vibrating Screen	3YZS1548	3YZS1548	3YZS1860	3YZS2160

Note:

1. The above model is elementary mobile crushing plant;
2. We can produce the crushing & screening plant according to customers' requirement.
